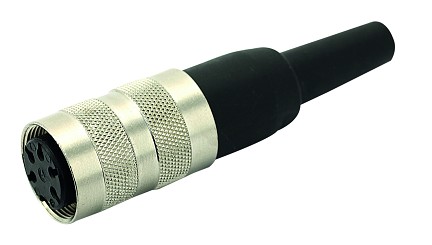

  6. T 3636 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 12 contacts, 4-6mm cable diameter. Contacts sold separately.
T 3636 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 12 contacts, 4-6mm cable diameter. Contacts sold separately.
T 3636 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 12 contacts, 4-6mm cable diameter. Contacts sold separately.

T 3636 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 12 contacts, 4-6mm cable diameter. Contacts sold separately.

$0.00
Female Cable Connector
PART NUMBER: T3636551
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 12
  • Cable Diameter: 4 - 6mm
  • Current Rating: 3A
  • Termination: Crimp
  • Locking: Screw
  • Insert: Thermoplastic
  • Version: Straight
  • Wire Gauge: 0.09 - 0.25mm² (28-24 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Mating Part(s): T3635551,T3635554,T3635556,T3635055
  • Size: M16
Female straight cable connector with internal strain relief and metal locking ring. 12 contacts, 4-6mm cable diameter. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts sold separately.
