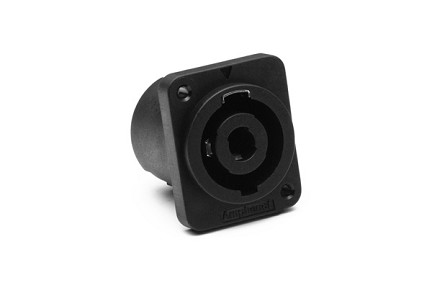

  7. SP-4-MDT BULK 4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Self-Tapping Holes, Solder Tabs 3/16", Black, Bulk Pack
SP-4-MDT BULK 4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Self-Tapping Holes, Solder Tabs 3/16
SP-4-MDT BULK 4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Self-Tapping Holes, Solder Tabs 3/16', Black, Bulk Pack

SP-4-MDT BULK 4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Self-Tapping Holes, Solder Tabs 3/16", Black, Bulk Pack

$0.00
Connectors
PART NUMBER: SP-4-MDT BULK
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 4
  • Current Carrying Capacity: 20A
  • Housing Material: PA66 GF30
  • IP Rating: IP20 (IP40 Mated Condition)
  • Finish: Black
  • Termination: Solder Tabs 3/16”
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Flammability Rating: UL94HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • UL Certification: UL 1977
  • Typical Contact Resistance: <3mΩ
  • Insulation Resistance: >1G Ω
  • Mating Cycles: 5000
4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Self-Tapping Holes, Solder Tabs 3/16", Black, Bulk Pack
