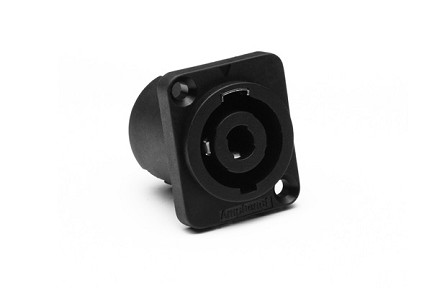

  7. SP-4-MD 4 Pole Loudspeaker Chassis Mount, D Type Flange, with Thru Holes, 3/16" Solder Tabs, Black Finish. Comparable to PN# NL4MP
SP-4-MD 4 Pole Loudspeaker Chassis Mount, D Type Flange, with Thru Holes, 3/16
SP-4-MD 4 Pole Loudspeaker Chassis Mount, D Type Flange, with Thru Holes, 3/16' Solder Tabs, Black Finish. Comparable to PN# NL4MP

SP-4-MD 4 Pole Loudspeaker Chassis Mount, D Type Flange, with Thru Holes, 3/16" Solder Tabs, Black Finish. Comparable to PN# NL4MP

$0.00
Loudspeaker Chassis Mount
PART NUMBER: SP-4-MD
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 4
  • Finish: Black
  • Contact Plating: Silver
  • IP Rating: IP20 (IP40) (Mated Condition)
  • Current Carrying Capacity: 20A
  • Termination: Solder Tabs 3/16”
  • Flammability Rating: UL94HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Service Voltage RMS: 133V (not suitable for domestic applications above 50V)133V (not suitable for domestic applications above 50V)
  • Test Voltage AC RMS: 1500V
  • Typical Contact Resistance: < 3mΩ
  • Insulation Resistance: > 2GΩ/ >1GΩ after Damp Heat Test
  • Operating Temperature: -25°C to +75°C (-13°F to 167°F)
  • Typical Cable Retention Force: 200N
  • Cable OD Range: 5-10mm (0.19" - 0.39")
  • Housing Material: Thermoplastic
  • Mating Cycles: 5000
  • Application(s): Audio & Lighting
4 Pole Loudspeaker Chassis Mount, D Type Flange, with Thru Holes, 3/16" Solder Tabs, Black Finish. Comparable to PN# NL4MP
