  7. SP-2-MDH 2 Pole Loudspeaker Chassis Mount, D Type Flange,Thru Holes, Horizontal PCB, Black Finish. Comparable to PN# NL2MD-H

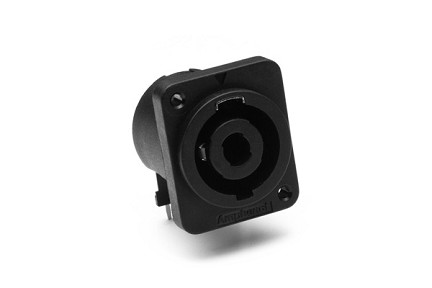

SP-2-MDH 2 Pole Loudspeaker Chassis Mount, D Type Flange,Thru Holes, Horizontal PCB, Black Finish. Comparable to PN# NL2MD-H
SP-2-MDH 2 Pole Loudspeaker Chassis Mount, D Type Flange,Thru Holes, Horizontal PCB, Black Finish. Comparable to PN# NL2MD-H

SP-2-MDH 2 Pole Loudspeaker Chassis Mount, D Type Flange,Thru Holes, Horizontal PCB, Black Finish. Comparable to PN# NL2MD-H

$0.00
Loudspeaker Chassis Mount
PART NUMBER: SP-2-MDH
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 2
  • Current Carrying Capacity: 20A
  • Housing Material: Thermoplastic
  • Finish: Black
  • IP Rating: IP20 (IP40) (Mated Condition)
  • Termination: Printed Circuit Board (PCB)
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Mating Cycles: 5000
  • Flammability Rating: UL94HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
2 Pole Loudspeaker Chassis Mount, D Type Flange,Thru Holes, Horizontal PCB, Black Finish. Comparable to PN# NL2MD-H
