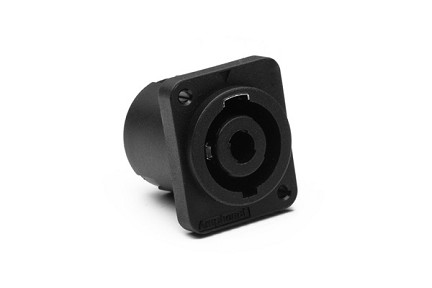

SP-2-MD 2 Pole Loudspeaker Chassis Mount, D Type Flange,Thru Holes, Solder Tabs 3/16', Black Finish. Comparable to PN# NL2MP

SP-2-MD 2 Pole Loudspeaker Chassis Mount, D Type Flange,Thru Holes, Solder Tabs 3/16", Black Finish. Comparable to PN# NL2MP

$0.00

Loudspeaker Chassis Mount

PART NUMBER: SP-2-MD

Datasheet:

Positions: 2
Finish: Black
Contact Plating: Silver
IP Rating: IP20 (IP40) (Mated Condition)
Current Carrying Capacity: 20A
Termination: Solder Tabs 3/16"
Flammability Rating: UL94HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 133V (not suitable for domestic applications above 50V)133V (not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1500V
Typical Contact Resistance: < 3mΩ
Insulation Resistance: > 2GΩ/ >1GΩ after Damp Heat Test
Operating Temperature: -25°C to +75°C (-13°F to 167°F)
Typical Cable Retention Force: 200N
Cable OD Range: 5-10mm (0.19" - 0.39")
Housing Material: Thermoplastic
Mating Cycles: 5000
Application(s): Audio & Lighting

QUANTITY

2 Pole Loudspeaker Chassis Mount, D Type Flange, Thru Holes, Solder Tabs 3/16", Black Finish. Comparable to PN# NL2MP
