Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
18-4 Position
PLUGS

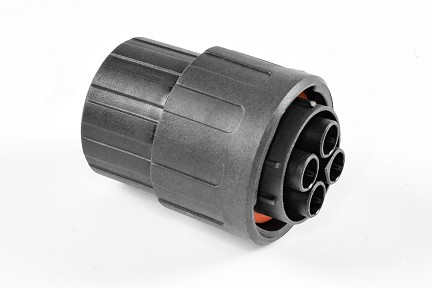

RTS6BS18N4PSHEC03 Plug, 4 Position, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
RTS6BS18N4PSHEC03 Plug, 4 Position, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
RTS6BS18N4PSHEC03 Plug, 4 Position, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
$0.00
Plug
PART NUMBER:
RTS6BS18N4SHEC03
Datasheet
:
View / Download
4
Circular
69
56
Plastic
SPECIFICATIONS:
Number of Contacts:
4
Shell Size:
18
Contact Size:
#8 (3.6mm)
Amperage:
65A
Wire Range:
8 AWG
Voltage:
1000V
Contact Pin or Socket:
Socket
Gender:
Female
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP68 / IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
Yes
Termination Technique:
Crimp
Salt Spray:
>500h
Mating Part(s)*:
RTS018N4P*, RTS1BS18N4P*, RTS718N4P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 4 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
Energy,Power,Robotics,Machine tools,Building Automation & Control,Instumentation Measurement,Off Road,Mining,Railway,Telecom,Data infrastructure
EcoMate~Aquarius
600
Connectors~Plugs|Connectors~Socket (Female)
Related Items
108039118 Locking Clip with Lanyard, Shell Size 18
REQUEST A QUOTE
M300BT Adjustable Hand Crimp Tool
REQUEST A QUOTE
MS10A23F-10 3.6mm (10mm²) Socket Contact, Gold Flash, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A23G10-10 3.6mm (10mm²) Socket Contact, 10?"Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A23G15-10 3.6mm (10mm²) Socket Contact, 15?"Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A23G30-10 3.6mm (10mm²) Socket Contact, 30?"Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A23S-10 Socket Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 10-16mm² 8AWG
REQUEST A QUOTE
MS10A23T-10 3.6mm (10mm²) Socket Contact, Tin Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A25S-8A 3.6mm Socket Contact, Silver, Machined, 65A, Wire Range 8AWG. *Suitable only for 18-2 & 18-4 Connectors
REQUEST A QUOTE
RTS018N4P03 Receptacle, Square Flange, 4 Position, Male, Shell Size 18, with Silicone Seal
REQUEST A QUOTE
RTS018N4PHEC03 Receptacle, Square Flange, 4 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
REQUEST A QUOTE
RTS18CCRG Coding color ring, Green, size 18. Comparable to PN# UTS618CCRG
REQUEST A QUOTE
RTS18CCRR Coding color ring, Red, size 18. Comparable to PN# UTS618CCRR
REQUEST A QUOTE
RTS18CCRY Coding color ring, Yellow, size 18. Comparable to PN# UTS618CCRY
REQUEST A QUOTE
RTS1BS18N4P03 Receptacle, Inline, 4 Position, Male, Shell Size 18, with Silicone Seal
REQUEST A QUOTE
RTS1BS18N4PHEC03 Receptacle, Inline, 4 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
REQUEST A QUOTE
RTS618NDCG Dust Cap for Plug, Size 18. Comparable to PN# UTS618DCG
REQUEST A QUOTE
RTS718N4P03 Receptacle, Jam Nut, 4 Position, Male, Shell Size 18, with Silicone Seal
REQUEST A QUOTE
RTS718N4PHEC03 Receptacle, Jam Nut, 4 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
REQUEST A QUOTE
UH2-5 Universal positioner is used with the universal hand crimp tool AF8. Wire range 12-26AWG
REQUEST A QUOTE
