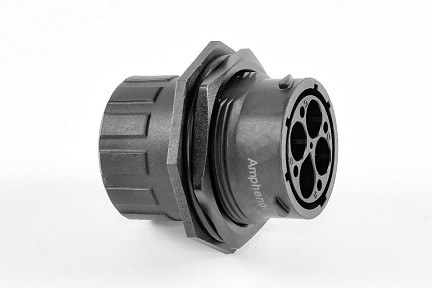

RTS718N4PHEC03 Receptacle, Jam Nut, 4 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
RTS718N4PHEC03 Receptacle, Jam Nut, 4 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
RTS718N4PHEC03 Receptacle, Jam Nut, 4 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS718N4PHEC03
Datasheet
:
View / Download
4
Circular
69
56
Plastic
SPECIFICATIONS:
Number of Contacts:
4
Shell Size:
18
Contact Size:
#8 (3.6mm)
Amperage:
65A
Wire Range:
8 AWG
Voltage:
1000V
Contact Pin or Socket:
Pin
Gender:
Male
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP68 / IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
Yes
Termination Technique:
Crimp
Salt Spray:
>500h
Mating Part(s)*:
RTS6BS18N4S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 4 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
Energy,Power,Robotics,Machine tools,Building Automation & Control,Instumentation Measurement,Off Road,Mining,Railway,Telecom,Data infrastructure
EcoMate~Aquarius
600
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
