Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
16-26 Position
PLUGS

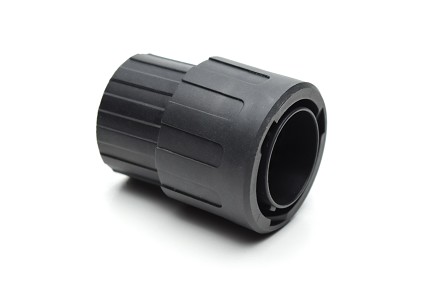

RTS6BS16N26PHEC03 Straight plug with endcap, 26 positions, size 16, pin contact
RTS6BS16N26PHEC03 Straight plug with endcap, 26 positions, size 16, pin contact
RTS6BS16N26PHEC03 Straight plug with endcap, 26 positions, size 16, pin contact
$0.00
Plug
PART NUMBER:
RTS6BS16N26PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
26
Circular
69
7.5
Plastic
SPECIFICATIONS:
Shell Size:
16
No. of Contacts:
26
Contact Pin or Socket:
Pin
Termination Technique:
Crimp
IP Rating:
IP67 / IP69k (in mated condition)
Volt:
250
Rohs Compliant?:
Yes
Salt Spray:
>500h
Temperature Range:
-40°C to +125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS716N26S03, RTS016N26S03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 26 Position, Male, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Plugs|Connectors~Pin (Male)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3957 Crimp Die for Stamped & Formed Contact
REQUEST A QUOTE
MFX-3958 Hand Tool, Stamped & Formed Contact, Size 20, 20-28AWG
REQUEST A QUOTE
MP20W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP24W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP28W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
QXRT20 Contact Extraction Tool, #20 (Ø 1.0) Contact. Comparable to PN# RX20D44
REQUEST A QUOTE
RTS016N26S03 Receptacle, square flange, 26 positions, size 16, socket contact, silicone rubber seal
REQUEST A QUOTE
RTS016N26SHEC03 Receptacle, square flange, 26 positions, size 16, socket contact, silicone rubber seal, endcap
REQUEST A QUOTE
RTS16CCRG Coding color ring, Green, size 16. Comparable to PN# UTS616CCRG
REQUEST A QUOTE
RTS16CCRR Coding color ring, Red, size 16. Comparable to PN# UTS616CCRR
REQUEST A QUOTE
RTS16CCRY Coding color ring, Yellow, size 16. Comparable to PN# UTS616CCRY
REQUEST A QUOTE
RTS616NDCG Dust cap for Plug, Size 16. Comparable to PN# UTS616DCG
REQUEST A QUOTE
RTS6BS16N26P03 Straight plug with cord grip, 26 positions, size 16, pin contact, silicone rubber seal
REQUEST A QUOTE
RTS716N26S03 Receptacle, jam nut, 26 positions, size 16, socket contact, silicone rubber seal
REQUEST A QUOTE
RTS716ND26S03 Receptacle, Jam Nut, PC Tail, 26 Position, Female, Shell Size 16, with Silicone Seal. Comparable to PN# UTS716D26S
REQUEST A QUOTE
RTS716ND26S0332 Receptacle, Jam Nut, PC Tail, 26 Position, Female, Shell Size 16, Silicone Seal, with BoardLock. Comparable to PN# UTS716D26S32
REQUEST A QUOTE
SP20W1F Pin Contact, Stamped, Size 20, Gold Flash, Wire Range .34-.50mm², 22-20AWG, 5A. Compatible to part # SM20W3J
REQUEST A QUOTE
SP20W1G10 Pin Contact, Stamped, Size 20, Gold 10µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G15 Pin Contact, Stamped, Size 20, Gold 15µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G30 Pin Contact, Stamped, Size 20, Gold 30µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G5 Pin Contact, Stamped, Size 20, Gold 5µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W2F Size 20 Stamped & Formed Pin Contact, Gold Flash Plating, 5A, Wire Range 18-22AWG, 3 Tangs. 3,000 pcs Reel
REQUEST A QUOTE
SP20W2T Size 20 Pin Contact, Stamped, Tin over Nickel, 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 Tangs
REQUEST A QUOTE
SP20WG10 Size 20 Pin Contact, Stamped, Gold 10µ", 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 prongs
REQUEST A QUOTE
