Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
16-26 Position
SQUARE FLANGE RECEPTACLES

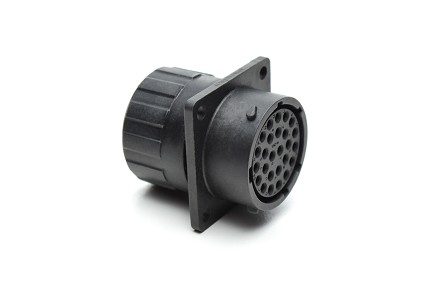

RTS016N26SHEC03 Receptacle, square flange, 26 positions, size 16, socket contact, silicone rubber seal, endcap
RTS016N26SHEC03 Receptacle, square flange, 26 positions, size 16, socket contact, silicone rubber seal, endcap
RTS016N26SHEC03 Receptacle, square flange, 26 positions, size 16, socket contact, silicone rubber seal, endcap
$0.00
Square Flange Receptacle
PART NUMBER:
RTS016N26SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
26
Circular
69
7.5
Plastic
SPECIFICATIONS:
Shell Size:
16
No. of Contacts:
26
Contact Size(s):
20
Contact Pin or Socket:
Socket
AWG:
20-30
Amperage:
5A(stamped) or 7.5A (machined)
Volts:
250
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 / IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Salt Spray:
>500h
Mating Parts:
RTS6BS16N26P03, RTS6BS16N26PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 4 Position, Female, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Socket (Female)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3957 Crimp Die for Stamped & Formed Contact
REQUEST A QUOTE
MFX-3958 Hand Tool, Stamped & Formed Contact, Size 20, 20-28AWG
REQUEST A QUOTE
MS20W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .34-.50mm², 20-22 AWG
REQUEST A QUOTE
MS20W23G10 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G15 Size 20 Socket Contact, Machined, Gold 15µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS24M23F Size 20 Socket Contact, Machined, Gold Flash, 13A, Wire Range .14-.25mm², 24-26 AWG
REQUEST A QUOTE
MS24M23G10 Size 20 Socket Contact, Machined, Gold 10µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G15 Size 20 Socket Contact, Machined, Gold 15µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G30 Size 20 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G5 Size 20 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G10 Size 20 Socket Contact, Machined, Gold 10µ",7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G15 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS28W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G10 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G15 Size 20 Socket Contact, Machined, Gold 15µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
QXRT20 Contact Extraction Tool, #20 (Ø 1.0) Contact. Comparable to PN# RX20D44
REQUEST A QUOTE
RTFD16B Shell Size 16 Square Flange Receptacle Gaskets, Thickness 0.8mm (±0.2). Compatible to part # UTFD15B
REQUEST A QUOTE
RTS016DCG Dust cap for Receptacle, Size 16. Comparable to PN# UTS16DCG
REQUEST A QUOTE
RTS016N26S03 Receptacle, square flange, 26 positions, size 16, socket contact, silicone rubber seal
REQUEST A QUOTE
RTS16CCRG Coding color ring, Green, size 16. Comparable to PN# UTS616CCRG
REQUEST A QUOTE
RTS16CCRR Coding color ring, Red, size 16. Comparable to PN# UTS616CCRR
REQUEST A QUOTE
RTS16CCRY Coding color ring, Yellow, size 16. Comparable to PN# UTS616CCRY
REQUEST A QUOTE
RTS6BS16N26P03 Straight plug with cord grip, 26 positions, size 16, pin contact, silicone rubber seal
REQUEST A QUOTE
RTS6BS16N26PHEC03 Straight plug with endcap, 26 positions, size 16, pin contact
REQUEST A QUOTE
SS20W1F Socket Contact, Stamped, Size 20, Gold Flash, Wire Range .34-.50mm² 20-22AWG, 5A. Compatible to part # SC20W3J
REQUEST A QUOTE
SS20W1G10 Socket Contact, Stamped, Size 20, Gold 10µ", Wire Range .34-.50mm² .34-.50mm² 22-20AWG, 5A
REQUEST A QUOTE
