18-23 Position
INLINE RECEPTACLES

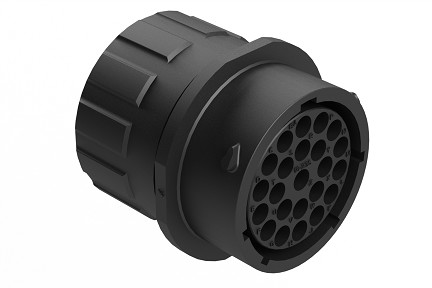

RTS1BS18N23SHEC03R Receptacle, Inline, 23 Position, Female, Shell Size 18, Silicone Seal and End Cap with Reduced Individual Wire Sealing
RTS1BS18N23SHEC03R Receptacle, Inline, 23 Position, Female, Shell Size 18, Silicone Seal and End Cap with Reduced Individual Wire Sealing
RTS1BS18N23SHEC03R Receptacle, Inline, 23 Position, Female, Shell Size 18, Silicone Seal and End Cap with Reduced Individual Wire Sealing
$0.00
Inline Receptacle
PART NUMBER:
RTS1BS18N23SHEC03R
Datasheet
:
View / Download
23
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
18
Number of Contacts:
23
Contact Size:
16
Wire Range:
14-24AWG
Contact Pin or Socket:
Socket
Gender:
Female
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 & IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Mating Part(s)*:
RTS6BS18N23P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 23 Position, Female, Shell Size 18, Silicone Seal and End Cap with Reduced Individual Wire Sealing
Energy,Power,Robotics,Machine tools,Building Automation & Control,Instumentation Measurement,Off Road,Mining,Railway,Telecom,Data infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Inline~Reduced Diameter Seal|Connectors~Socket (Female)
Related Items
MS14M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G30 Size 16 Socket Contact, Machined, Gold 30µ", Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS16M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 16-18 AWG
REQUEST A QUOTE
MS16M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS20M23F Socket Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 20-22 AWG
REQUEST A QUOTE
MS20M23G10 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G15 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
RTS6BS18N23P03 Straight plug with cord grip, 23 positions, size 18, pin contact, silicone rubber seal. Comparable to PN #UTS6JC1823P
REQUEST A QUOTE
RTS6BS18N23PHEC03 Straight plug with endcap, 23 positions, size 18, pin contact. Comparable to PN #UTS6GN1823P
REQUEST A QUOTE
RTS6BS18N23PHEC03R Plug, 23 Position, Male, Shell Size 18, Silicone Seal and End Cap with Individual Reduced Wire Sealing
REQUEST A QUOTE
SS14M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range 2.0-2.5mm², 14 AWG, 13A. Compatible to part # SC14M1D70, 192990-2660. Comparable to PN# SC14M1D70
REQUEST A QUOTE
SS14M1G10 Size 16 Stamped & Formed Socket Contact, 10?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS14M1G15 Size 16 Stamped & Formed Socket Contact, 15?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS14M1G30 Size 16 Stamped & Formed Socket Contact, 30?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS14M1G5 Socket Contact, Stamped, Size 16, Gold 5µ", Wire Range 2.0-2.5mm², 14AWG, 13A
REQUEST A QUOTE
SS16M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range .75-1.5mm², 18-16AWG, 13A. Compatible to part # SC16M11D70
REQUEST A QUOTE
SS16M1G10 Socket Contact, Contact, Size 16, Stamped, 10µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SS16M1G15 Socket Contact, Size 16, Stamped, Gold 15µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SS16M1G30 Socket Contact, Stamped, Size 16, Gold 30µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SS16M1G5 Socket Contact, Stamped, Size 16, Gold 5µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SS20M1F Socket Contact, Size 16, Stamped, Gold Flash, Wire Range .34-.50mm², 20-22AWG, 13A. Compatible to part # SC20M1D70
REQUEST A QUOTE
SS20M1G10 Socket Contact, Size 16, Stamped, Gold 10µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS20M1G15 Socket Contact, Stamped, Size 16, Gold 15µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS20M1G30 Socket Contact, Stamped, Size 16, Gold 30µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS20M1G5 Socket Contact, Size 16, Stamped, Gold 5µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS24M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range .14-.25mm², 26-24AWG, 13A. Compatible to part # SC24M1D70
REQUEST A QUOTE
SS24M1G10 Socket Contact, Stamped, Size 16, Gold 10µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SS24M1G15 Socket Contact, Stamped, Size 16, Gold 15µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SS24M1G30 Socket Contact, Stamped, Size 16, Gold 30µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SS24M1G5 Socket Contact, Stamped, Size 16Gold 5µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
