Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
18-23 Position
PLUGS

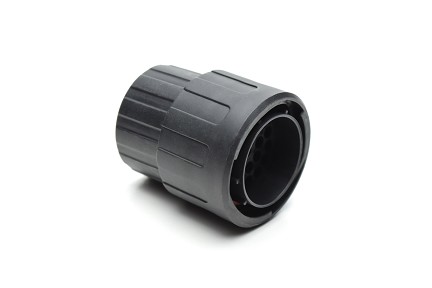

RTS6BS18N23PHEC03 Straight plug with endcap, 23 positions, size 18, pin contact. Comparable to PN #UTS6GN1823P
RTS6BS18N23PHEC03 Straight plug with endcap, 23 positions, size 18, pin contact. Comparable to PN #UTS6GN1823P
RTS6BS18N23PHEC03 Straight plug with endcap, 23 positions, size 18, pin contact. Comparable to PN #UTS6GN1823P
$0.00
Plug
PART NUMBER:
RTS6BS18N23PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
23
Circular
69
13
SPECIFICATIONS:
Shell Size:
18
No. of Contacts:
23
Contact Pin or Socket:
Pin
Termination Technique:
Crimp
IP Rating:
IP67 / IP69k (in mated condition)
Volt:
500
Rohs Compliant?:
Yes
Salt Spray:
>500h
Temperature Range:
-40°C to +125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS018N23S03, RTS018N23S03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 23 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Plugs|Connectors~Pin (Male)
