Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
16-9 (4+5) Position Mix
INLINE RECEPTACLES

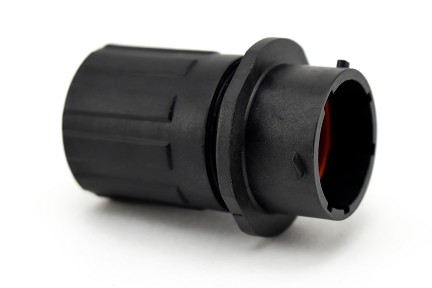

RTS1BS16N09PHEC03 Size 16 Inline Receptacle with Endcap, Male, 9 (4+5)Positions, Contact Size 16 (1.6mm), Size 12 (2.5mm), Silicone Rubber Seal
RTS1BS16N09PHEC03 Size 16 Inline Receptacle with Endcap, Male, 9 (4+5)Positions, Contact Size 16 (1.6mm), Size 12 (2.5mm), Silicone Rubber Seal
RTS1BS16N09PHEC03 Size 16 Inline Receptacle with Endcap, Male, 9 (4+5)Positions, Contact Size 16 (1.6mm), Size 12 (2.5mm), Silicone Rubber Seal
$0.00
Inline Receptacle w Endcap
PART NUMBER:
RTS1BS16N09PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
9
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
16
No. of Contacts:
9 (4+5)
Contact Size:
16, 2.5mm
Amperage:
13A & 23A
Wire Range:
14-12 /14-24
Voltage:
500
Contact Pin or Socket:
Pin
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 and IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Gender:
Male
Mating Part(s):
RTS6BS16N9S03, RTS6BS16N09SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 9 (4+5) Position, Male, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Inline|Connectors~Pin (Male)
