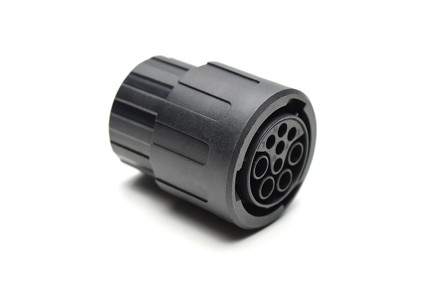

RTS6BS16N09SHEC03 Straight plug with endcap, 9 (4+5) positions, size 16, socket contact
RTS6BS16N09SHEC03 Straight plug with endcap, 9 (4+5) positions, size 16, socket contact

RTS6BS16N09SHEC03 Straight plug with endcap, 9 (4+5) positions, size 16, socket contact

$0.00
Plug
PART NUMBER: RTS6BS16N09SHEC03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 16
  • No. of Contacts: 9 (4+5)
  • Contact Pin or Socket: Socket
  • Termination Technique: Crimp
  • IP Rating: IP67 / IP69k (in mated condition)
  • Volt: 500
  • Rohs Compliant?: Yes
  • Salt Spray: >500h
  • Temperature Range: -40°C to +125°C
  • Housing Material: Thermoplastic UL94 V-0
  • Mating Parts: RTS716N9P03, RTS016N9P03
  • Amperage: 23A & 13A
Plug, 9 (4+5) Position, Female, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing
