INLINE RECEPTACLES

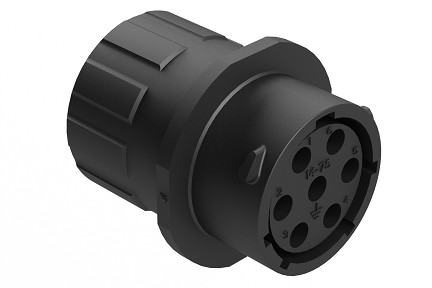

RTS1BS14N7SHEC03R Receptacle, Inline, 7 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Reduced Diameter Wire Sealing
RTS1BS14N7SHEC03R Receptacle, Inline, 7 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Reduced Diameter Wire Sealing
RTS1BS14N7SHEC03R Receptacle, Inline, 7 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Reduced Diameter Wire Sealing
$0.00
Inline Receptacle
PART NUMBER:
RTS1BS14N7SHEC03R
Datasheet
:
View / Download
3D Model
:
View/Download
7
Circular
67
13
Metal
SPECIFICATIONS:
Shell Size:
14
No. of Contacts:
7
Contact Size:
16
Amperage:
13A
Wire Range:
14-24AWG
Voltage:
500
Contact Pin or Socket?:
Socket
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67 (in mated condition)
Temperature Range:
-40°C to +125°C
Insulation Diameter (OD) Min-Max:
1.2mm - 2.1mm
Rohs Compliant?:
TRUE
Gender:
Female
Mating Part*:
RT00147PNH*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 7 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Reduced Diameter Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Inline~Reduced Diameter Seal|Connectors~Socket (Female)
