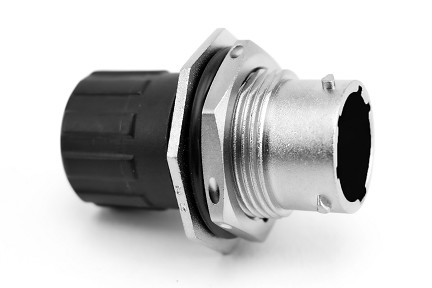

RT07147PNHECR Size 14 Male Jam Nut Receptacle, 7 Positions, Endcap, Reduced Wire Seals, 14 - 24AWG

RT07147PNHECR Size 14 Male Jam Nut Receptacle, 7 Positions, Endcap, Reduced Wire Seals, 14 - 24AWG

RT07147PNHECR Size 14 Male Jam Nut Receptacle, 7 Positions, Endcap, Reduced Wire Seals, 14 - 24AWG

$0.00

Jam Nut Receptacle

PART NUMBER: RT07147PNHECR

Datasheet:

View / Download 3D Model:

View/Download

Shell Size: 14
No. of Contacts: 7
Contact Size: 16
Contact Pin or Socket?: Pin
Gender: Male
Amperage: 13A
Wire Range (AWG): 14-24
Voltage: 500
Housing Material: Zinc Alloy, Nickel Plated
IP Rating: IP67 (in mated condition)
Temperature Range: -40°C to +105°C
Insulation Overall Diameter(min-max): Ø1.2mm - Ø2.1mm
Rohs Compliant?: TRUE

QUANTITY

Description

Receptacle, Jam Nut, 7 Position, Male, Shell Size 14, and End Cap with Individual Reduced Diameter Wire Sealing, Range 14 - 24AWG
