14-19 Position
INLINE RECEPTACLES

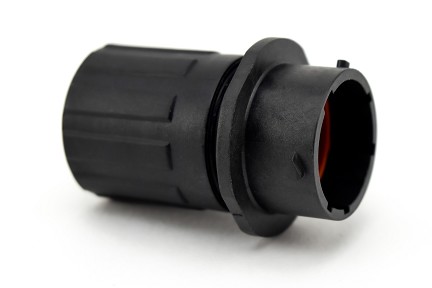

RTS1BS14N19PHEC03 Size 14 Inline Receptacle with Endcap, Male, 19 Positions, Contact Size 20 (0.5mm), Silicone Rubber Seal. Comparable to PN #UTS6GN1419P
RTS1BS14N19PHEC03 Size 14 Inline Receptacle with Endcap, Male, 19 Positions, Contact Size 20 (0.5mm), Silicone Rubber Seal. Comparable to PN #UTS6GN1419P
RTS1BS14N19PHEC03 Size 14 Inline Receptacle with Endcap, Male, 19 Positions, Contact Size 20 (0.5mm), Silicone Rubber Seal. Comparable to PN #UTS6GN1419P
$0.00
Inline Receptacle w Endcap
PART NUMBER:
RTS1BS14N19PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
19
Circular
69
7.5
Metal
SPECIFICATIONS:
Shell Size:
14
No. of Contacts:
19
Contact Size:
20
Amperage:
7.5A/5.0A
Wire Range:
20-28
Voltage:
250
Contact Pin or Socket:
Pin
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 and IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Gender:
Male
Mating Part(s):
RTS6BS14N19S03, RTS6BS14N19SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 19 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Inline|Connectors~Pin (Male)
