Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
14-19 Position
PLUGS

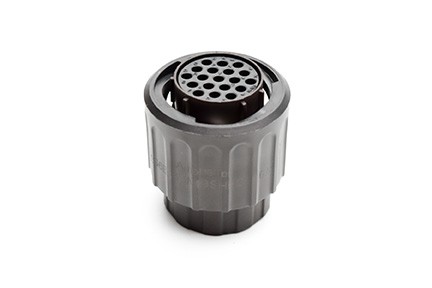

RTS6BS14N19SHEC03 Straight plug with end cap, 19 positions, size 14, socket contact, endcap. Intermateable with part # UTS6JC1419S. Comparable to PN #UTS6GN1419S
RTS6BS14N19SHEC03 Straight plug with end cap, 19 positions, size 14, socket contact, endcap. Intermateable with part # UTS6JC1419S. Comparable to PN #UTS6GN1419S
RTS6BS14N19SHEC03 Straight plug with end cap, 19 positions, size 14, socket contact, endcap. Intermateable with part # UTS6JC1419S. Comparable to PN #UTS6GN1419S
$0.00
Plug
PART NUMBER:
RTS6BS14N19SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
19
Circular
69
7.5
Plastic
SPECIFICATIONS:
Amperage:
7.5A / 5A
Contact Size:
20
IP Rating:
IP67 / IP69k (in mated condition)
No. of Contacts:
19
Pin or Socket:
Socket
Rohs Compliant?:
Yes
Shell Size:
14
Volts:
250
Mating Parts:
RTS714N19P03, RTS014N19P03, RTS014N19PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 19 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Plugs|Connectors~Socket (Female)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3957 Crimp Die for Stamped & Formed Contact
REQUEST A QUOTE
MFX-3958 Hand Tool, Stamped & Formed Contact, Size 20, 20-28AWG
REQUEST A QUOTE
MS20W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .34-.50mm², 20-22 AWG
REQUEST A QUOTE
MS20W23G10 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G15 Size 20 Socket Contact, Machined, Gold 15µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS24M23F Size 20 Socket Contact, Machined, Gold Flash, 13A, Wire Range .14-.25mm², 24-26 AWG
REQUEST A QUOTE
MS24M23G10 Size 20 Socket Contact, Machined, Gold 10µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G15 Size 20 Socket Contact, Machined, Gold 15µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G30 Size 20 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G5 Size 20 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G10 Size 20 Socket Contact, Machined, Gold 10µ",7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G15 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS28W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G10 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G15 Size 20 Socket Contact, Machined, Gold 15µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
QXRT20 Contact Extraction Tool, #20 (Ø 1.0) Contact. Comparable to PN# RX20D44
REQUEST A QUOTE
RTS014N19P03 Receptacle, square flange, 19 positions, size 14, pin contact, silicone rubber seal. Comparable to PN #UTS01419P
REQUEST A QUOTE
RTS014N19PHEC03 Receptacle, square flange, 19 positions, size 14, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1419P
REQUEST A QUOTE
RTS14CCRG Coding color ring, Green, size 14. Compatible to part # UTS614CCRG
REQUEST A QUOTE
RTS14CCRR Coding color ring, Red, size 14. Compatible to part # UTS614CCRR
REQUEST A QUOTE
RTS14CCRY Coding color ring, Yellow, size 14. Compatible to part # UTS614CCRY
REQUEST A QUOTE
RTS1BS14N19P03 Receptacle, Inline, 19 positions, size 14, pin contact, silicone rubber seal. Comparable to PN #UTS1JC1419P
REQUEST A QUOTE
RTS614NDCG Dust cap for Plug, Size 14. Compatible to part # UTS614DCG
REQUEST A QUOTE
RTS6BS14N19S03 Plug, 19 Position, Female, Shell Size 14, with Silicone Seal. Compatible to part # UTS6JC1419S
REQUEST A QUOTE
RTS714N19P03 Receptacle, jam nut, 19 positions, size 14, pin contact, silicone rubber seal. Intermateable with part # UTS71419P. Comparable to PN #UTS71419P
REQUEST A QUOTE
SS20W1F Socket Contact, Stamped, Size 20, Gold Flash, Wire Range .34-.50mm² 20-22AWG, 5A. Compatible to part # SC20W3J
REQUEST A QUOTE
SS20W1G10 Socket Contact, Stamped, Size 20, Gold 10µ", Wire Range .34-.50mm² .34-.50mm² 22-20AWG, 5A
REQUEST A QUOTE
