Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
10-6 Position
INLINE RECEPTACLES

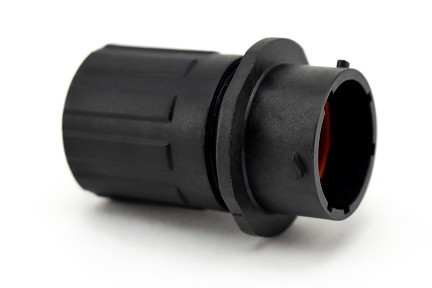

RTS1BS10N6PHEC03 Size 10 Inline Receptacle with Endcap, Male, 6 Positions, Contact Size 20 (0.5mm), Silicone Rubber Seal. Comparable to PN #UTS6GN106P
RTS1BS10N6PHEC03 Size 10 Inline Receptacle with Endcap, Male, 6 Positions, Contact Size 20 (0.5mm), Silicone Rubber Seal. Comparable to PN #UTS6GN106P
RTS1BS10N6PHEC03 Size 10 Inline Receptacle with Endcap, Male, 6 Positions, Contact Size 20 (0.5mm), Silicone Rubber Seal. Comparable to PN #UTS6GN106P
$0.00
Inline Receptacle w Backshell
PART NUMBER:
RTS1BS10N6PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
6
Circular
69
7.5
Metal
SPECIFICATIONS:
Shell Size:
10
No. of Contacts:
6
Contact Size:
20
Amperage:
7.5A/5.0A
Wire Range:
20-28
Voltage:
250
Contact Pin or Socket:
Pin
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 and IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Gender:
Male
Mating Part(s):
RTS6BS10N6S03, RTS6BS10N6SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 6 Position, Male, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Inline|Connectors~Pin (Male)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3957 Crimp Die for Stamped & Formed Contact
REQUEST A QUOTE
MFX-3958 Hand Tool, Stamped & Formed Contact, Size 20, 20-28AWG
REQUEST A QUOTE
MP20W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP24W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP28W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
QXRT20 Contact Extraction Tool, #20 (Ø 1.0) Contact. Comparable to PN# RX20D44
REQUEST A QUOTE
RTS010DCG Dust cap for Receptacle, Size 10. Compatible to part # RTS010DCG
REQUEST A QUOTE
RTS10CCRG Coding color ring, Green, size 10. Compatible to part # UTS610CCRG
REQUEST A QUOTE
RTS10CCRR Coding color ring, Red, size 10. Compatible to part # UTS610CCRR
REQUEST A QUOTE
RTS10CCRY Coding color ring, Yellow, size 10. Compatible to part # UTS610CCRY
REQUEST A QUOTE
RTS1BS10N6P03 Receptacle, Inline, 6 positions, size 10, pin contact, silicone rubber seal. Comparable to PN #UTS1JC106P
REQUEST A QUOTE
RTS6BS10N6S03 Plug, 6 Position, Female, Shell Size 10, with Silicone Seal. Compatible to part # UTS6JC106S
REQUEST A QUOTE
RTS6BS10N6SHEC03 Plug, 6 Position, Female, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing. Compatible to part # UTS6JC106S
REQUEST A QUOTE
SP20W2F Size 20 Stamped & Formed Pin Contact, Gold Flash Plating, 5A, Wire Range 18-22AWG, 3 Tangs. 3,000 pcs Reel
REQUEST A QUOTE
SP20W2G10 Size 20 Pin Contact, Stamped, Gold 10µ" over Nickel, 13A, Wire Range .34-.50mm², 20-22 AWG,with 3 Tangs
REQUEST A QUOTE
SP20W2G15 Size 20 Pin Contact, Stamped, Gold 15µ" over Nickel, 13A, Wire Range .34-.50mm², 20-22 AWG,with 3 Tangs
REQUEST A QUOTE
SP20W2G30 Size 20 Pin Contact, Stamped, Gold 30µ" over Nickel, 13A, Wire Range .34-.50mm², 20-22 AWG,with 3 Tangs
REQUEST A QUOTE
SP20W2G5 Size 20 Pin Contact, Stamped, Gold 5µ" over Nickel, 13A, Wire Range .34-.50mm², 20-22 AWG,with 3 Tangs
REQUEST A QUOTE
SP20W2T Size 20 Pin Contact, Stamped, Tin over Nickel, 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 Tangs
REQUEST A QUOTE
SP20WG10 Size 20 Pin Contact, Stamped, Gold 10µ", 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 prongs
REQUEST A QUOTE
SP20WG30 Size 20 Pin Contact, Stamped, Gold 30µ", 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 prongs
REQUEST A QUOTE
