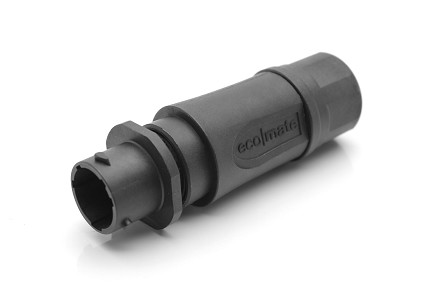

RTS1BS10N6P03 Receptacle, Inline, 6 positions, size 10, pin contact, silicone rubber seal. Comparable to PN #UTS1JC106P
RTS1BS10N6P03 Receptacle, Inline, 6 positions, size 10, pin contact, silicone rubber seal. Comparable to PN #UTS1JC106P
RTS1BS10N6P03 Receptacle, Inline, 6 positions, size 10, pin contact, silicone rubber seal. Comparable to PN #UTS1JC106P
$0.00
Receptacle, Inline, 6 positions, size 10, pin contact, silicone rubber seal
PART NUMBER:
RTS1BS10N6P03
Datasheet
:
View / Download
3D Model
:
View/Download
6
Circular
69
7.5
Plastic
SPECIFICATIONS:
No. of Contacts:
6
Shell Size:
10
Amperage:
5A(stamped) or 7.5A (machined)
Contact size:
20
AWG:
20-30
Volt:
250
Contact Pin or Socket:
Pin
IP Rating:
IP67 / IP69k (in mated condition)
Housing Material:
Thermoplastic UL94 V-0
Temperature Range:
-40° C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Male or Female:
Male
Mating Parts:
RTS6BS10N6S03, RTS6BS10N6SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 6 Position, Male, Shell Size 10, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Inline|Connectors~Pin (Male)
