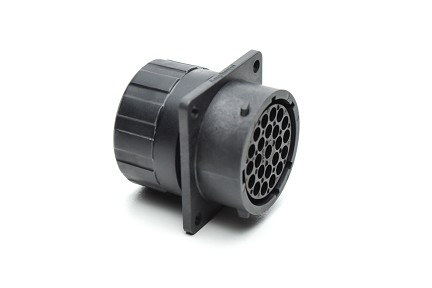

RTS018N23SHEC03 Receptacle, square flange, 23 positions, size 18, socket contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1823S
RTS018N23SHEC03 Receptacle, square flange, 23 positions, size 18, socket contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1823S
RTS018N23SHEC03 Receptacle, square flange, 23 positions, size 18, socket contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1823S
$0.00
Square Flange Receptacle
PART NUMBER:
RTS018N23SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
23
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
18
No. of Contacts:
23
Socket:
Socket
Contact size:
16
IP Rating:
IP67 / IP69k (in mated condition)
Salt Spray:
>500h
Termination Technique:
Crimp
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 32 Position, Female, Shell Size 18, with Silicone Seal and End Cap
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Socket (Female)
