Waterproof Connectors
Ecomate Aquarius IP69k
23 Positions 13A / 500V
SQUARE FLANGE RECEPTACLE

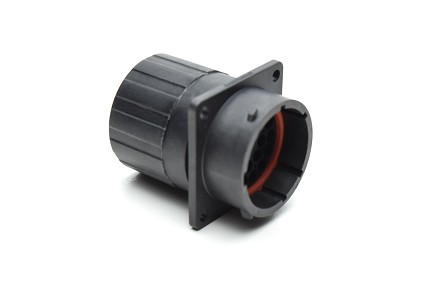

RTS018N23PHEC03 Square Flange Receptacle, 23 positions, size 18, pin contact, silicone rubber seal, end cap. Comparable to PN #UTS0GN1823P
RTS018N23PHEC03 Square Flange Receptacle, 23 positions, size 18, pin contact, silicone rubber seal, end cap. Comparable to PN #UTS0GN1823P
RTS018N23PHEC03 Square Flange Receptacle, 23 positions, size 18, pin contact, silicone rubber seal, end cap. Comparable to PN #UTS0GN1823P
$0.00
Square Flange Receptacle
PART NUMBER:
RTS018N23PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
47
Circular
69
Plastic
SPECIFICATIONS:
Shell Size:
18
No. of Contacts:
23
Amperage:
13A
Voltage:
500
Contact Gender:
Pin
IP Rating:
IP67 / IP69k (in mated condition)
Salt Spray:
>500h
Gender :
Male
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS018N23SC03, RTS018N23SHEC03,
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 23 Position, Male, Shell Size 18, Silicone Seal, with End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Square Flange|Connectors~Pin (Male)
