16-9 (4+5) Position Mix
SQUARE FLANGE RECEPTACLES

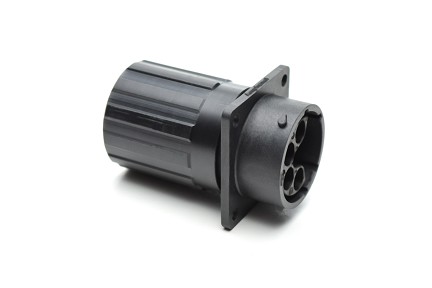

RTS016N09PHEC03 Receptacle, square flange, 9 (4+5) positions, size 16, pin contact, silicone rubber seal, endcap
RTS016N09PHEC03 Receptacle, square flange, 9 (4+5) positions, size 16, pin contact, silicone rubber seal, endcap
RTS016N09PHEC03 Receptacle, square flange, 9 (4+5) positions, size 16, pin contact, silicone rubber seal, endcap
$0.00
Square Flange Receptacle
PART NUMBER:
RTS016N09PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
9
Circular
69
23
Plastic
SPECIFICATIONS:
Shell Size:
16
No. of Contacts:
9 (4+5)
Pin:
Pin
Contact size:
2.5mm, 16
IP Rating:
IP67 / IP69k (in mated condition)
Salt Spray:
>500h
Termination Technique:
Crimp
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Part(s):
RTS6BS16N9S03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 9 (4+5) Position, Male, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Pin (Male)
