Home
Our Product Lines
ecomate Connectors
ecomate RM
12-4 (2+2) Position Mix
JAM NUT RECEPTACLES

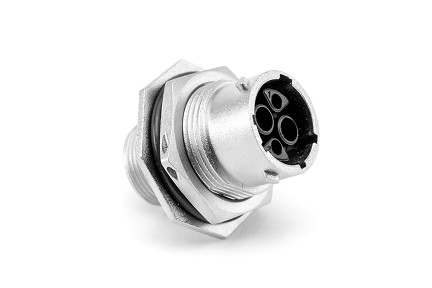

RT07122SNH03 4 (2+2) Position Jam Nut Receptacle, Female, Shell Size 12, with Silicone Seal
RT07122SNH03 4 (2+2) Position Jam Nut Receptacle, Female, Shell Size 12, with Silicone Seal
RT07122SNH03 4 (2+2) Position Jam Nut Receptacle, Female, Shell Size 12, with Silicone Seal
$0.00
PART NUMBER:
RT07122SNH03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
67
23
Metal
SPECIFICATIONS:
Shell Size:
12
Number of Contacts:
4
Contact Size:
20, 2.5mm
Amperage:
23A, 5A (stamped) or 7.5A (machined)
Wire Range:
(SZ 20) 28-20 & (SZ 12) 14-12 AWG
Voltage Rating:
500
Contact Type (Pin or Socket):
Socket
Gender:
Female
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67
Temperature Range:
-40°C to +125°C
Termination Technique:
Crimp
Mating Part(s)*:
RT06122PNH*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
4 (2+2) Position Jam Nut Receptacle, Female, Shell Size 12, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM
500
Connectors~Receptacles~Jam Nut|Connectors~Socket (Female)
