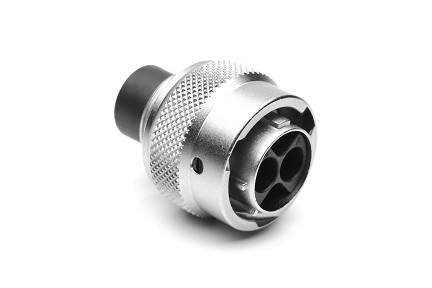

RT06122PNH Plug, Male, 4 Contacts, Contact Sizes 2.5mm & 20, 23A & 5A/500V, Shell Size 12
RT06122PNH Plug, Male, 4 Contacts, Contact Sizes 2.5mm & 20, 23A & 5A/500V, Shell Size 12
RT06122PNH Plug, Male, 4 Contacts, Contact Sizes 2.5mm & 20, 23A & 5A/500V, Shell Size 12
$0.00
Plug
PART NUMBER:
RT06122PNH
Datasheet
:
View / Download
3D Model
:
View/Download
2
Circular
67
23
Metal
SPECIFICATIONS:
Amperage:
23A, 5A (stamped) or 7.5A (machined)
AWG:
(SZ 20) 28-20 & (SZ 12) 14-12
Contact Pin or Socket:
Pin
Contact size:
Mixed 2.5mm & 20
IP Rating:
IP67
Material:
Zinc Alloy, Nickel Plated
Shell Size:
12
Temperature Range:
-40°C to +125°C
Volt:
500
Mating Parts:
RT00122SNH*, RT07122SNH* Receptacles
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 4 (2+2) Position, Male, Shell Size 12
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM
500
Connectors~Plugs|Connectors~Pin (Male)
Related Items
108039112 Locking Clip with Lanyard, Shell Size 12
REQUEST A QUOTE
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3954 Hand Tool, Stamped & Formed Contact, Size 16, 20-14AWG
REQUEST A QUOTE
MFX-3957 Crimp Die for Stamped & Formed Contact
REQUEST A QUOTE
MFX-3958 Hand Tool, Stamped & Formed Contact, Size 20, 20-28AWG
REQUEST A QUOTE
MFX-3959 Hand Tool, Machined Contacts, Size Universal
REQUEST A QUOTE
MFX-3960 Pneumatic Crimp Tool for Machined Contacts, Size Universal
REQUEST A QUOTE
MFX-3962 Hand Tool, Stamped & Formed Contact, 2.5 mm
REQUEST A QUOTE
MP20W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP24W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP28W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
QXRT12S Extraction Tool 2.5mm Contact
REQUEST A QUOTE
QXRT20 Contact Extraction Tool, #20 (Ø 1.0) Contact. Comparable to PN# RX20D44
REQUEST A QUOTE
RB00011912 Receptacle Dustcap without Nylon Cord, Rubber Material, Shell Size 12
REQUEST A QUOTE
RT00122SNH Square Flange Receptacle, Female, 2.5mm & 20 Contacts, 500V
REQUEST A QUOTE
RT00122SNHEC Square Flange Receptacle, Female, 2.5mm & 20 Contacts, 500V, Endcap
REQUEST A QUOTE
RT012DCG Receptacle Dust Cap with Chain. Compatible to part # UT012DCG
REQUEST A QUOTE
RT012RL Receptacle Dust Cap Rubber with Cord Shell Size 12
REQUEST A QUOTE
RT06122PNHEC Plug, Male, 4 Contacts, Contact Sizes 2.5mm & 20, 23A & 5A/500V, Shell Size 12
REQUEST A QUOTE
RT07122SNH Jam Nut Receptacle, Female, 4 Contacts, Sizes 2.5mm & 20, 500V, Shell Size 12
REQUEST A QUOTE
RT0B-12CG-S1 Backshell (90°), Shell Size 12, Cable Range 6.0-10.5mm
REQUEST A QUOTE
RT0B-12CG-S2 Backshell (90°), Shell Size 12, Cable Range 8.5-12.5mm
REQUEST A QUOTE
RT0L-12CG-S1 Long Backshell (straight), Shell Size 12, Cable Range 6.0-10.5mm
REQUEST A QUOTE
RT0L-12CG-S2 Long Backshell (straight), Shell Size 12, Cable Range 8.5-12.5mm
REQUEST A QUOTE
RT0S-12CG-S1 Short Backshell (straight), Shell Size 12, Cable Range 6.0-10.5mm
REQUEST A QUOTE
RT0S-12CG-S2 Short Backshell (straight), Shell Size 12, Cable Range 8.5-12.5mm
REQUEST A QUOTE
RT612DCG Plug Dust Cap with Chain Shell Size 12. Compatible to part # UTG612DCG
REQUEST A QUOTE
RTFD12B Shell Size 12 Square Flange Receptacle Gaskets, Thickness 0.8mm (±0.2). Compatible to part # UTFD13B
REQUEST A QUOTE
SP12A1T 2.5mm Stamped & Formed Pin Contact, Tin Plating, 23A, Wire Range 14-12 AWG
REQUEST A QUOTE
SP20W1F Pin Contact, Stamped, Size 20, Gold Flash, Wire Range .34-.50mm², 22-20AWG, 5A. Compatible to part # SM20W3J
REQUEST A QUOTE
SP20W1G10 Pin Contact, Stamped, Size 20, Gold 10µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G15 Pin Contact, Stamped, Size 20, Gold 15µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G30 Pin Contact, Stamped, Size 20, Gold 30µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G5 Pin Contact, Stamped, Size 20, Gold 5µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W2F Size 20 Stamped & Formed Pin Contact, Gold Flash Plating, 5A, Wire Range 18-22AWG, 3 Tangs. 3,000 pcs Reel
REQUEST A QUOTE
SP20W2T Size 20 Pin Contact, Stamped, Tin over Nickel, 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 Tangs
REQUEST A QUOTE
