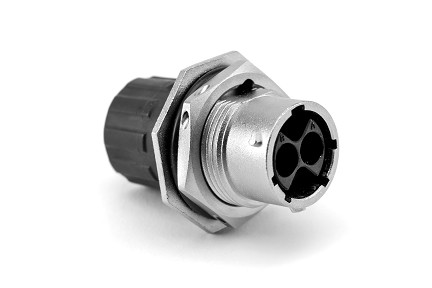

RT07122PNHEC Jam Nut Receptacle, Male, 4 Contacts, Sizes 2.5mm & 20, 500V, Shell Size 12, Endcap
RT07122PNHEC Jam Nut Receptacle, Male, 4 Contacts, Sizes 2.5mm & 20, 500V, Shell Size 12, Endcap
RT07122PNHEC Jam Nut Receptacle, Male, 4 Contacts, Sizes 2.5mm & 20, 500V, Shell Size 12, Endcap
$0.00
Receptacle
PART NUMBER:
RT07122PNHEC
Datasheet
:
View / Download
3D Model
:
View/Download
2
Circular
67
23
Metal
SPECIFICATIONS:
Amperage:
23A, 5A (stamped) or 7.5A (machined)
AWG:
(SZ 20) 28-20 & (SZ 12) 14-12
Contact Pin or Socket:
Pin
Contact size:
Mixed 2.5mm & 20
IP Rating:
IP67
Material:
Zinc Alloy, Nickel Plated
Shell Size:
12
Temperature Range:
-40°C to +125°C
Volt:
500
Mating Parts:
RT06122SNH* Plug
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 4 (2+2) Position, Male, Shell Size 12, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
