12-4 (2+2) Position Mix
JAM NUT RECEPTACLES

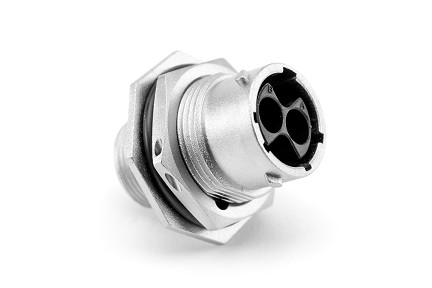

RT07122PNH Receptacle, jam nut, 4 (2+2) positions, size 20 (1.0mm),12 (2.5mm), pin contact
RT07122PNH Receptacle, jam nut, 4 (2+2) positions, size 20 (1.0mm),12 (2.5mm), pin contact
RT07122PNH Receptacle, jam nut, 4 (2+2) positions, size 20 (1.0mm),12 (2.5mm), pin contact
$0.00
Receptacle
PART NUMBER:
RT07122PNH
Datasheet
:
View / Download
3D Model
:
View/Download
2
Circular
67
23
Metal
SPECIFICATIONS:
Amperage:
23A, 5A (stamped) or 7.5A (machined)
AWG:
(SZ 20) 28-20 & (SZ 12) 14-12
Contact Pin or Socket:
Pin
Contact size:
Mixed 20 (1.0mm) 12 (2.5mm)
IP Rating:
IP67
Material:
Zinc Alloy, Nickel Plated
Shell Size:
12
Temperature Range:
-40°C to +125°C
Volt:
500
Mating Parts:
RT06122SNH* Plug
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 4 (2+2) Position, Male, Shell Size 12
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM
500
Connectors~Receptacles~Jam Nut|Connectors~Receptacles|Connectors~Pin (Male)
