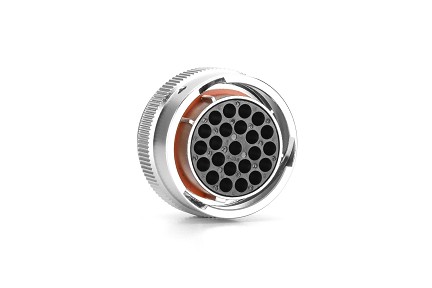

RT061823SNH03SS Plug, 23 Position, Female, Shell Size 18, with Silicone Seal, IP69K
RT061823SNH03SS Plug, 23 Position, Female, Shell Size 18, with Silicone Seal, IP69K
RT061823SNH03SS Plug, 23 Position, Female, Shell Size 18, with Silicone Seal, IP69K
$0.00
Plug
PART NUMBER:
RT061823SNH03SS
Datasheet
:
View / Download
3D Model
:
View/Download
23
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
18
No.of Contacts:
23
Contact Size:
16
Contact Pin or Socket?:
Socket
AWG:
14-26
Amperage:
13A
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67 / IP69k (in mated condition)
Temperature Range:
-40° C to +125°C
Mating Parts:
RT001823PKNH03, RT001823PKNH03-K
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 23 Position, Female, Shell Size 18, with Silicone Seal, IP69K
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM~SuperSeal
500
Connectors~Plugs|Connectors~Socket (Female)
