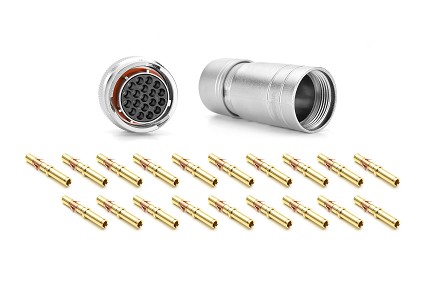

RT061823SNH03SS-K Plug Kit, 23 Position, Female, Shell Size 18, Silicone Seal, with Machined Contacts, IP69K
RT061823SNH03SS-K Plug Kit, 23 Position, Female, Shell Size 18, Silicone Seal, with Machined Contacts, IP69K

RT061823SNH03SS-K Plug Kit, 23 Position, Female, Shell Size 18, Silicone Seal, with Machined Contacts, IP69K

$0.00
Plug Kit, Socket, with silicone seal IP69k
PART NUMBER: RT061823SNH03SS-K
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Contacts: 23
  • Shell Size: 18
  • Amperage: 13A
  • Contact size: 16
  • AWG: 14-26
  • Volt: 500
  • Contact Pin or Socket: Socket
  • IP Rating: IP67 / IP69k (in mated condition)
  • Housing Material: Zinc Alloy, Nickel Plated
  • Temperature Range: -40° C to +125°C
  • Rohs Compliant: TRUE
  • Salt Spray: >500h
  • Male or Female: Female
  • Mating Parts: RT001823PKNH03, RT001823PKNH03-K
Plug Kit, 23 Position, Female, Shell Size 18, Silicone Seal, with Machined Contacts, IP69K
