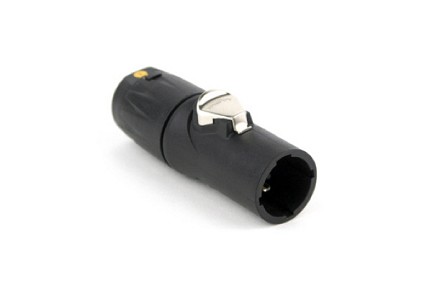

HPT-3-MJ Male/Inlet
HPT-3-MJ Male/Inlet 'Jumbo' Cable Plug, Screw Termination, Non-Locking Backshell. Comparable to PN# HBLMC

HPT-3-MJ Male/Inlet "Jumbo" Cable Plug, Screw Termination, Non-Locking Backshell. Comparable to PN# HBLMC

$0.00
Cable Plug
PART NUMBER: HPT-3-MJ

SPECIFICATIONS:

  • Positions: 3
  • Current Carrying Capacity: 20A US / 16A EU
  • IP Rating: IP65 & UL50E Type 4 Enclosure Rated (when used with Spring or chain caps)
  • Contact Plating: Silver
  • Cable OD Range: 7.5-16.0 mm
  • Housing Material: PA66 GF30 / Black
  • Gender: Male
  • Operating Temperature: -25°C to +80°C (-13°F to +176°F)
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • UL Certification: UL50E Type 4
  • Typical Contact Resistance: >2mΩ
  • Insulation Resistance: >2GΩ
  • Finish: Black
  • Contact Type: Screw
  • Termination: 2mm Hex key screw terminal
  • Voltage: 250VAC
  • Application(s): Audio & Lighting
Male/Inlet "Jumbo" Cable Plug, Screw Termination, Non-Locking Back Nut
