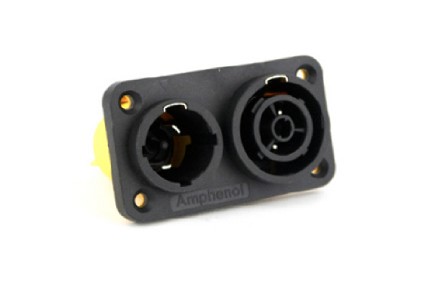

HPT-3-CC Dual Inlet/Outlet Panel Mount - Spade Lug Termination. Comparable to PNs# NAC3PX-TOP, #HBLMFPD
HPT-3-CC Dual Inlet/Outlet Panel Mount - Spade Lug Termination. Comparable to PNs# NAC3PX-TOP, #HBLMFPD

HPT-3-CC Dual Inlet/Outlet Panel Mount - Spade Lug Termination. Comparable to PNs# NAC3PX-TOP, #HBLMFPD

$0.00
Panel Mount Connector
PART NUMBER: HPT-3-CC
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 3
  • Current Carrying Capacity: 20A US / 16A EU
  • Voltage: 250VAC
  • IP Rating: IP65 & UL50E Type 4 Enclosure Rated (when used with Spring or chain caps)
  • Contact Type: Tab 1/4"
  • Finish: Black /Yellow
  • Contact Plating: Silver
  • Cable OD Range: 7.5-16.0 mm
  • Housing Material: PA66 GF30 / Black
  • Gender: Male /Female
  • Operating Temperature: -25°C to +80°C (-13°F to +176°F)
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • UL Certification: UL50E Type 4
  • Typical Contact Resistance: >2mΩ
  • Insulation Resistance: >2GΩ
  • Termination: Flat Tab 1/4”
  • Application(s): Audio & Lighting
Dual Inlet/Outlet Panel Mount - Spade Lug Termination
