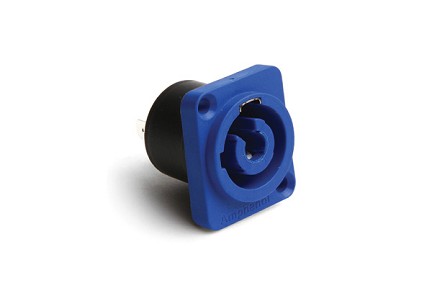

HP-3-MDW Power Cable Connector, Power In, Without Insulation Divider, Screw Contacts, Thermoplastic, Blue. Comparable to PN# NAC3MPA-1-WOT
HP-3-MDW Power Cable Connector, Power In, Without Insulation Divider, Screw Contacts, Thermoplastic, Blue. Comparable to PN# NAC3MPA-1-WOT

HP-3-MDW Power Cable Connector, Power In, Without Insulation Divider, Screw Contacts, Thermoplastic, Blue. Comparable to PN# NAC3MPA-1-WOT

$0.00
CONNECTOR
PART NUMBER: HP-3-MDW
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 3
  • Current Carrying Capacity: 25A
  • Contact Plating: Brass / Silver
  • Termination: Solder tabs 3/16"
  • IP Rating: IP54
  • Finish: PA66 GF30 / Black
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • UL Certification: E339831
  • Insulation Resistance: >2GΩ
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Typical Cable Retention Force: 200N (Subject to cable material and O.D.)
  • Cable OD Range: 5mm - 15mm (0.19” - 0.59”)
  • Housing Material: PA66 GF30 / Black
  • Voltage: 250VAC
  • Application(s): Audio & Lighting
Power Cable Connector, Power In, Without Insulation Divider, Screw Contacts, Thermoplastic, Blue. Comparable to PN# NAC3MPA-1-WOT
