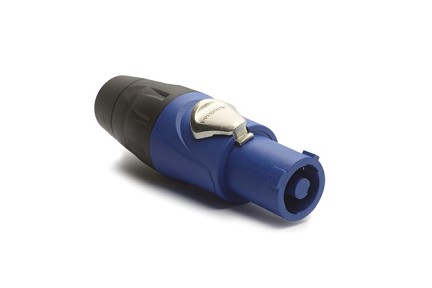

HP-3-FJ 3 Pole Power Cable Connector, Power In, Thermoplastic Shell, Large Cable Clamp, Blue

HP-3-FJ 3 Pole Power Cable Connector, Power In, Thermoplastic Shell, Large Cable Clamp, Blue

HP-3-FJ 3 Pole Power Cable Connector, Power In, Thermoplastic Shell, Large Cable Clamp, Blue

$0.00

Connectors

PART NUMBER: HP-3-FJ

Datasheet:

View / Download

Positions: 3
Gender: Female
Current Carrying Capacity: 25A
Housing Material: PA66 GF30
IP Rating: IP20
Finish: Blue
Termination: Screw or Solder Tab 3/16”
Operating Temperature: -25°C to +75°C (-13°F to +167°F)
Voltage: 250VAC
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
UL Certification: UL 1977
Typical Contact Resistance: <3mΩ
Insulation Resistance: >1G Ω

QUANTITY

Description

3 Pole Power Cable Connector, Power In, Thermoplastic Shell, Large Cable Clamp, Blue

HP-3-F Power Cable Connector, Power In, Screw Contacts, Thermoplastic, Blue. Comparable to PN# NAC3FCA

HP-3-F Power Cable Connector, Power In, Screw Contacts, Thermoplastic, Blue. Comparable to PN# NAC3FCA

REQUEST A QUOTE

HP-3-FG Power Cable Connector, Power Out, Screw Contacts, Thermoplastic, Grey. Comparable to PN# NAC3FCB

HP-3-FG Power Cable Connector, Power Out, Screw Contacts, Thermoplastic, Grey. Comparable to PN# NAC3FCB

REQUEST A QUOTE

HP-3-FGJ 3 Pole Power Cable Connector, Power Out, Thermoplastic Shell, Large Cable Clamp, Grey

HP-3-FGJ 3 Pole Power Cable Connector, Power Out, Thermoplastic Shell, Large Cable Clamp, Grey

REQUEST A QUOTE

HP-3-MDW Power Cable Connector, Power In, Without Insulation Divider, Screw Contacts, Thermoplastic, Blue. Comparable to PN# NAC3MPA-1-WOT

HP-3-MDW Power Cable Connector, Power In, Without Insulation Divider, Screw Contacts, Thermoplastic, Blue. Comparable to PN# NAC3MPA-1-WOT

REQUEST A QUOTE
