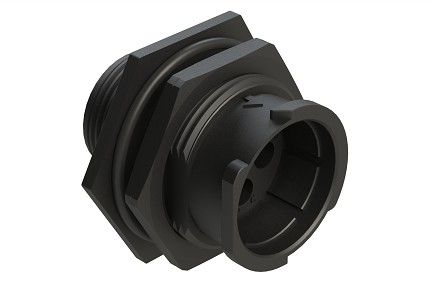

FLS714N4P03 4 Position Jam Nut Receptacle, Pin, Shell Size 14, Fast Lock Coupling
FLS714N4P03 4 Position Jam Nut Receptacle, Pin, Shell Size 14, Fast Lock Coupling

FLS714N4P03 4 Position Jam Nut Receptacle, Pin, Shell Size 14, Fast Lock Coupling

$0.00
Jam Nut Receptacle
PART NUMBER: FLS714N4P03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 14
  • Number of Contacts: 4
  • Contact Size: 2.5mm
  • Amperage: 23A (stamped) or 25A (machined)
  • Wire Range (AWG): 14-12
  • Voltage: 500
  • Contact Type: Pin
  • Gender: Male
  • Housing Material: Thermoplastic, UL94 V-0
  • IP Rating: IP67, IP68 (1.8M) and IP69k (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: TRUE
  • Resistance: 5000 MEGOHMS Min
  • Termination Technique:: Crimp
  • Mating Part(s)*: FLS614N4S*
Receptacle, Jam Nut, 4 Position, Male, Shell Size 14, Silicone Seal, Auto-Lock
