Home
Our Product Lines
ecomate Connectors
ecomate Aquarius Fathom Lock
14-4 Position
PLUGS

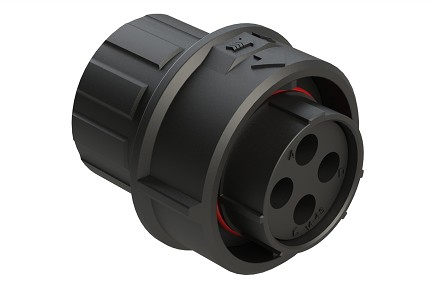

FLS614N4SHEC03 4 Position Plug, Socket, Shell Size 14, with Endcap, Fast Lock Coupling
FLS614N4SHEC03 4 Position Plug, Socket, Shell Size 14, with Endcap, Fast Lock Coupling
FLS614N4SHEC03 4 Position Plug, Socket, Shell Size 14, with Endcap, Fast Lock Coupling
$0.00
Plug
PART NUMBER:
FLS614N4SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
25
Plastic
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
4
Contact Size:
2.5mm
Amperage:
23A (stamped) or 25A (machined)
Wire Range (AWG):
14-12
Voltage:
500
Contact Type:
Socket
Gender:
Female
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67, IP68 (1.8M) and IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Resistance:
5000 MEGOHMS Min
Termination Technique::
Crimp
Mating Part(s)*:
FLS714N4P*, FLS014N4P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 4 Position, Female, Shell Size 14, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Fathom Lock
500
Connectors~Plugs|Connectors~Socket (Female)
