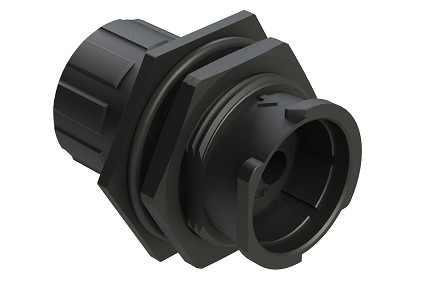

FLS714N3PHEC03 3 Position Jam Nut Receptacle, Pin, Shell Size 14, with Endcap, Fast Lock Coupling
FLS714N3PHEC03 3 Position Jam Nut Receptacle, Pin, Shell Size 14, with Endcap, Fast Lock Coupling

FLS714N3PHEC03 3 Position Jam Nut Receptacle, Pin, Shell Size 14, with Endcap, Fast Lock Coupling

$0.00
Jam Nut Receptacle
PART NUMBER: FLS714N3PHEC03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 14
  • Number of Contacts: 3
  • Contact Size: #8 (3.6mm)
  • Amperage: 45A
  • Wire Range (AWG): 12-10
  • Voltage: 600
  • Contact Type: Pin
  • Gender: Male
  • Housing Material: Thermoplastic, UL94 V-0
  • IP Rating: IP67, IP68 (1.8M) and IP69k (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: TRUE
  • Resistance: 5000 MEGOHMS Min
  • Termination Technique:: Crimp
  • Mating Part(s)*: FLS614N3S*
Receptacle, Jam Nut, 3 Position, Male, Shell Size 14, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock
