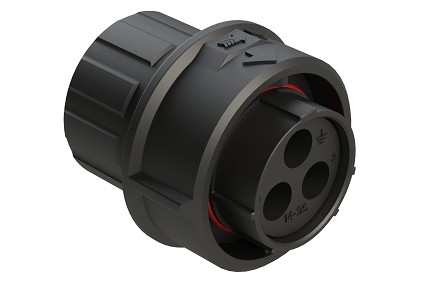

FLS614N3SHEC03 3 Position Plug, Socket, Shell Size 14, with Endcap, Fast Lock Coupling
FLS614N3SHEC03 3 Position Plug, Socket, Shell Size 14, with Endcap, Fast Lock Coupling

FLS614N3SHEC03 3 Position Plug, Socket, Shell Size 14, with Endcap, Fast Lock Coupling

$0.00
Plug
PART NUMBER: FLS614N3SHEC03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 14
  • Number of Contacts: 3
  • Contact Size: #8 (3.6mm)
  • Amperage: 45A
  • Wire Range (AWG): 12-10
  • Voltage: 600
  • Contact Type: Socket
  • Gender: Female
  • Housing Material: Thermoplastic, UL94 V-0
  • IP Rating: IP67, IP68 (1.8M) and IP69k (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: TRUE
  • Resistance: 5000 MEGOHMS Min
  • Termination Technique:: Crimp
  • Mating Part(s)*: FLS014N3P*, FLS014N3P*
Plug, 3 Position, Female, Shell Size 14, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock

Related Items

FLS014N3P03 3 Position Square Flange Receptacle, Pin, Shell Size 14, Fast Lock Coupling
FLS014N3P03 3 Position Square Flange Receptacle, Pin, Shell Size 14, Fast Lock Coupling
REQUEST A QUOTE
FLS014N3P03-PM 3 Position Square Flange Receptacle, Pin, Shell Size 14, with Seal Gasket, Fast Lock Coupling
FLS014N3P03-PM 3 Position Square Flange Receptacle, Pin, Shell Size 14, with Seal Gasket, Fast Lock Coupling
REQUEST A QUOTE
FLS014N3PHEC03 3 Position Square Flange Receptacle, Pin, Shell Size 14, with Endcap, Fast Lock Coupling
FLS014N3PHEC03 3 Position Square Flange Receptacle, Pin, Shell Size 14, with Endcap, Fast Lock Coupling
REQUEST A QUOTE
MS10A23F 3.6mm Socket Contact, Gold Flash, Machined, 45A, Wire Range 12-10 AWG
MS10A23F 3.6mm Socket Contact, Gold Flash, Machined, 45A, Wire Range 12-10 AWG
REQUEST A QUOTE
MS10A23F-10 3.6mm (10mm²) Socket Contact, Gold Flash, Machined, 45A, Wire Range 8AWG
MS10A23F-10 3.6mm (10mm²) Socket Contact, Gold Flash, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A23F-25 3.6mm Socket Contact, Gold Plated, Machined. 45A, Wire Range 1.5-2.5mm²
MS10A23F-25 3.6mm Socket Contact, Gold Plated, Machined. 45A, Wire Range 1.5-2.5mm²
REQUEST A QUOTE
MS10A23F-63 3.6mm Socket Contact, Gold Plated, Machined. 45A, Wire Range 4-6mm²
MS10A23F-63 3.6mm Socket Contact, Gold Plated, Machined. 45A, Wire Range 4-6mm²
REQUEST A QUOTE
MS10A23G10 3.6mm Socket Contact, 10?
MS10A23G10 3.6mm Socket Contact, 10?" Gold Plating, Machined, 45A, Wire Range 12-10 AWG
REQUEST A QUOTE
MS10A23G10-10 3.6mm (10mm²) Socket Contact, 10?
MS10A23G10-10 3.6mm (10mm²) Socket Contact, 10?"Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A23G15 3.6mm Socket Contact, 15?
MS10A23G15 3.6mm Socket Contact, 15?" Gold Plating, Machined, 45A, Wire Range 12-10 AWG
REQUEST A QUOTE
MS10A23G15-10 3.6mm (10mm²) Socket Contact, 15?
MS10A23G15-10 3.6mm (10mm²) Socket Contact, 15?"Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A23G30 3.6mm Socket Contact, 30?
MS10A23G30 3.6mm Socket Contact, 30?" Gold Plating, Machined, 45A, Wire Range 12-10 AWG
REQUEST A QUOTE
MS10A23G30-10 3.6mm (10mm²) Socket Contact, 30?
MS10A23G30-10 3.6mm (10mm²) Socket Contact, 30?"Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A23G5 3.6mm Socket Contact, 5?
MS10A23G5 3.6mm Socket Contact, 5?" Gold Plating, Machined, 45A, Wire Range 12-10 AWG
REQUEST A QUOTE
MS10A23S 3.6mm Socket Contact, Silver Plated, Machined, 45A, Wire Range 12-10 AWG
MS10A23S 3.6mm Socket Contact, Silver Plated, Machined, 45A, Wire Range 12-10 AWG
REQUEST A QUOTE
MS10A23S-10 Socket Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 10-16mm² 8AWG
MS10A23S-10 Socket Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 10-16mm² 8AWG
REQUEST A QUOTE
MS10A23S-25 Socket Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 1.5-2.5mm² 14-16AWG
MS10A23S-25 Socket Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 1.5-2.5mm² 14-16AWG
REQUEST A QUOTE
MS10A23S-63 Socket Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 4-6mm² 10-12AWG
MS10A23S-63 Socket Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 4-6mm² 10-12AWG
REQUEST A QUOTE
MS10A23SL 3.6mm (10mm²) Socket Contact, Silver Plating, Machined, 45A, Wire Range 10-12AWG
MS10A23SL 3.6mm (10mm²) Socket Contact, Silver Plating, Machined, 45A, Wire Range 10-12AWG
REQUEST A QUOTE
MS10A23T 3.6mm Socket Contact, Tin Plated, Machined, 45A, Wire Range 12-10 AWG
MS10A23T 3.6mm Socket Contact, Tin Plated, Machined, 45A, Wire Range 12-10 AWG
REQUEST A QUOTE
MS10A23T-10 3.6mm (10mm²) Socket Contact, Tin Plating, Machined, 45A, Wire Range 8AWG
MS10A23T-10 3.6mm (10mm²) Socket Contact, Tin Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS6ARS8S 3.6mm Socket Contact with RADSOK® Technology. Crimp Barrel, 86A, Wire Range 10-16mm² (8AWG)
MS6ARS8S 3.6mm Socket Contact with RADSOK® Technology. Crimp Barrel, 86A, Wire Range 10-16mm² (8AWG)
REQUEST A QUOTE
MS6ARS8S-10 3.6mm Socket Contact with RADSOK® Technology. Crimp Barrel, 45A, Wire Range 10mm² (8AWG)
MS6ARS8S-10 3.6mm Socket Contact with RADSOK® Technology. Crimp Barrel, 45A, Wire Range 10mm² (8AWG)
REQUEST A QUOTE
SC000717S-8 3.6mm machined contact, Socket, 45A, Wire Range 8-10 AWG, silver
SC000717S-8 3.6mm machined contact, Socket, 45A, Wire Range 8-10 AWG, silver
REQUEST A QUOTE
