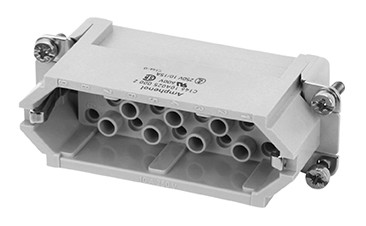

C146 10A025 060 2 25+PE Heavy duty male contact insert with 2xPE termination
C146 10A025 060 2 25+PE Heavy duty male contact insert with 2xPE termination

C146 10A025 060 2 25+PE Heavy duty male contact insert with 2xPE termination

$0.00
Contact Insert
PART NUMBER: C14610A0250602
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Cable Diameter: 4.1mm max.
  • Clearance: > 3.5 mm
  • Color: Grey
  • Contacts: 26
  • Creepage: > 4.6mm
  • Insert Material: PC GV (polycarbonate glass fiber filled)
  • Insertion/Withdrawal Force: 40-60 N
  • Insulation Resistance: > 10(10) Ω
  • Lifetime: >500 mating cycles
  • Operating Temperature: -40°C to +125°C
  • Protection: IP00 unmated, IP20 mated
  • Rated Current: 10A
  • Rated Impulse Voltage: 4000V
  • Rated Voltage: 250V
  • Size: A16
  • Termination: Crimp
  • Type: Male
  • Version: Stamped/rolled crimp contact
  • Weight: 34g
  • Rated Voltage UL: 600V
  • Contact Resistance: > 5 mΩ
25+PE Heavy duty male contact insert with 2xPE termination (for stamped crimp contacts). May be engaged or disengaged when live but without electrical load. If mated or unmated under load, the load shall be reduced to 10% of the rated current.
