  6. C146 10A025 005 2 50+PE Heavy duty male contact insert for stamped crimp contacts. May be engaged or disengaged when live but without electrical load. If mated or unmated under load, the load shall be reduced to 10% of the rated current. High profile hou

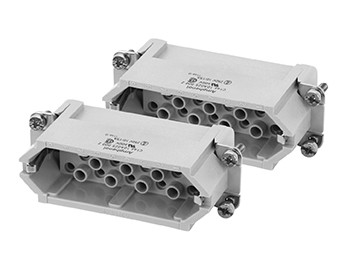

C146 10A025 005 2  50+PE Heavy duty male contact insert for stamped crimp contacts. May be engaged or disengaged when live but without electrical load. If mated or unmated under load, the load shall be reduced to 10% of the rated current. High profile hou
C146 10A025 005 2 50+PE Heavy duty male contact insert for stamped crimp contacts. May be engaged or disengaged when live but without electrical load. If mated or unmated under load, the load shall be reduced to 10% of the rated current. High profile hou

C146 10A025 005 2 50+PE Heavy duty male contact insert for stamped crimp contacts. May be engaged or disengaged when live but without electrical load. If mated or unmated under load, the load shall be reduced to 10% of the rated current. High profile hou

$0.00
Contact Insert
PART NUMBER: C14610A0250052
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Cable Diameter: 4.1mm max.
  • Clearance: > 3.5 mm
  • Color: Grey
  • Contacts: 51
  • Creepage: > 4.6mm
  • Insert Material: PC GV (polycarbonate glass fiber filled)
  • Insertion/Withdrawal Force: 40-60 N
  • Insulation Resistance: > 10(10) Ω
  • Lifetime: >500 mating cycles
  • Operating Temperature: -40°C to +125°C
  • Protection: IP00 unmated, IP20 mated
  • Rated Current: 10A
  • Rated Impulse Voltage: 4000V
  • Rated Voltage: 250V
  • Size: A32
  • Termination: Crimp
  • Type: Male
  • Version: Stamped/rolled crimp contact
  • Weight: 34g
  • Voltage Rating UL/CSA: 600
  • Contact Resistance: > 5 mΩ
50+PE Heavy duty male contact insert for stamped crimp contacts. May be engaged or disengaged when live but without electrical load. If mated or unmated under load, the load shall be reduced to 10% of the rated current. High profile housings/hoods
