C091 31H012 100 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts, Silver Contact Plating, Cable Diameter 4-8.5mm
C091 31H012 100 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts, Silver Contact Plating, Cable Diameter 4-8.5mm

C091 31H012 100 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts, Silver Contact Plating, Cable Diameter 4-8.5mm

$0.00
Male Cable Connector
PART NUMBER: C09131H0121005U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 12
  • Contact Diameter: 1.0mm
  • Contact Type: Pin
  • Gender: Male
  • Contact Plating: Silver
  • Cable Diameter Range: 4mm - 8mm
  • Wire Gauge (AWG): 22 AWG
  • Current Rating IEC 60512-5-2: 3
  • Rated Voltage IEC 60664-1: 32
  • Protection: IP68
  • Operating Temperature: -40°C to +100°C
  • Housing: Thermoplastic
  • Color: Black
  • Termination: Solder
  • Sealing Material: Chloroprene, silicone
  • Locking: QUICKLOCK SYSTEM
  • Shape: Circular
  • Cable Gland Size: PG9
  • RoHS Compliant?: Yes
  • Mating Cycles: >500
  • Mating Parts: C09131G0121005U, C09131G0121095U, C09131G0122005U, C09131G0122095U
Male Cable Connector, Quicklock, Size M16, 12 Contacts, Silver Contact Plating, Cable Diameter 4-8.5mm


Related Items

C091 11H012 000 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts (sold separately), Cable Diameter 4-8.5mm
C091 11H012 000 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts (sold separately), Cable Diameter 4-8.5mm
REQUEST A QUOTE
C091 11H012 002 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts (sold separately), Cable Diameter 8.5-10.5mm
C091 11H012 002 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts (sold separately), Cable Diameter 8.5-10.5mm
REQUEST A QUOTE

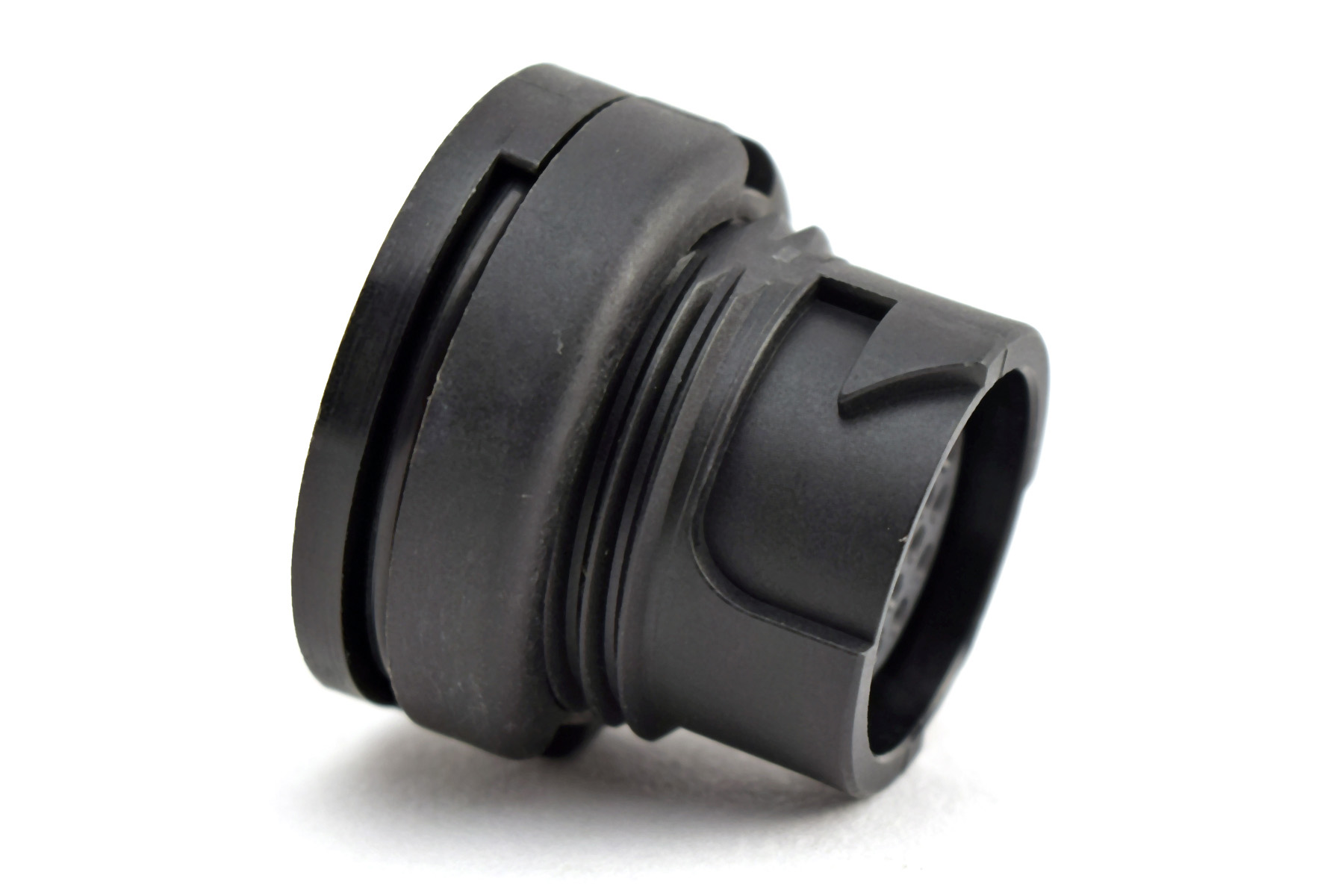

C091 31G012 100 5 U Female Receptacle, Quicklock, Size M16, 12 Contacts, Silver Contact Plating, Ring Nut
C091 31G012 100 5 U Female Receptacle, Quicklock, Size M16, 12 Contacts, Silver Contact Plating, Ring Nut
REQUEST A QUOTE
C091 31G012 109 5 U Female Receptacle, Quicklock, Size M16, 12 Contacts, Silver Contact Plating, Hex Nut
C091 31G012 109 5 U Female Receptacle, Quicklock, Size M16, 12 Contacts, Silver Contact Plating, Hex Nut
REQUEST A QUOTE
C091 31G012 200 5 U Female Receptacle, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Ring Nut
C091 31G012 200 5 U Female Receptacle, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Ring Nut
REQUEST A QUOTE

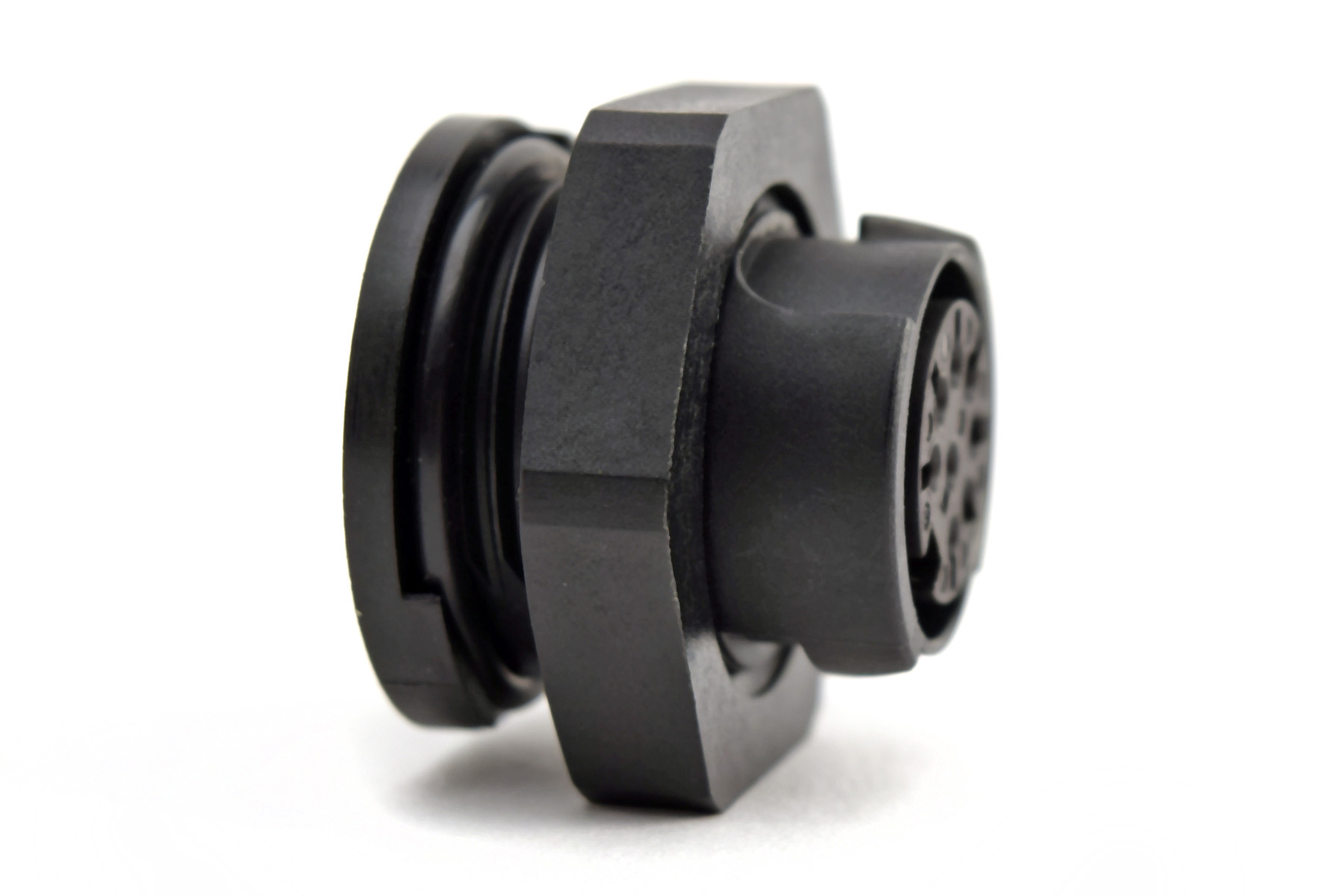

C091 31G012 209 5 U Female Receptacle, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Hex Nut
C091 31G012 209 5 U Female Receptacle, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Hex Nut
REQUEST A QUOTE
C091 31H012 200 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
C091 31H012 200 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
REQUEST A QUOTE
C091 31H012 202 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Cable Diameter 8.5-10.5mm
C091 31H012 202 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Cable Diameter 8.5-10.5mm
REQUEST A QUOTE
FH0300091 - M16 Spanner Wrench For Male and Female Cable Connectors. Comparable to PN# 02-1785-000
FH0300091 - M16 Spanner Wrench For Male and Female Cable Connectors. Comparable to PN# 02-1785-000
REQUEST A QUOTE
HN 01 010 0158 1 - 1.0mm pin contact, silver plated, wire gauge 0.25-0.09mm² . Stamped contacts on reel, 2000 pcs
HN 01 010 0158 1 - 1.0mm pin contact, silver plated, wire gauge 0.25-0.09mm² . Stamped contacts on reel, 2000 pcs
REQUEST A QUOTE
HN 01 010 0158 2 - 1.0mm pin contact, gold plated, wire gauge 0.25-0.09mm². Stamped contacts on reel, 2000 pcs
HN 01 010 0158 2 - 1.0mm pin contact, gold plated, wire gauge 0.25-0.09mm². Stamped contacts on reel, 2000 pcs
REQUEST A QUOTE
TA 0000 - TA Series hand crimping toolFor single contacts. Heavymate Series D,E,F,M, C091 A Series.
TA 0000 - TA Series hand crimping toolFor single contacts. Heavymate Series D,E,F,M, C091 A Series.
REQUEST A QUOTE
TA 0003 091 0001 - TA Series Contact LocatorFor 1.0mm Contacts
TA 0003 091 0001 - TA Series Contact LocatorFor 1.0mm Contacts
REQUEST A QUOTE
TN0101001581 - Stamped pin contacts on reel. Silver, 1.0mm
TN0101001581 - Stamped pin contacts on reel. Silver, 1.0mm
REQUEST A QUOTE
VN 01 010 0158 1 - Stamped male contacts. Silver plated, 1.0mm
VN 01 010 0158 1 - Stamped male contacts. Silver plated, 1.0mm
REQUEST A QUOTE
VN 01 010 0158 2 - Stamped male contacts. Gold plated, 1.0mm
VN 01 010 0158 2 - Stamped male contacts. Gold plated, 1.0mm
REQUEST A QUOTE
