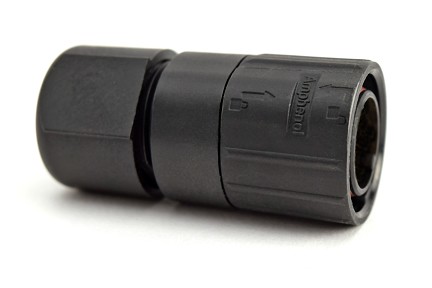

  6. C091 11H012 002 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts (sold separately), Cable Diameter 8.5-10.5mm
C091 11H012 002 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts (sold separately), Cable Diameter 8.5-10.5mm
C091 11H012 002 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts (sold separately), Cable Diameter 8.5-10.5mm

C091 11H012 002 5 U Male Cable Connector, Quicklock, Size M16, 12 Contacts (sold separately), Cable Diameter 8.5-10.5mm

$0.00
Male Cable Connector
PART NUMBER: C09111H0120025U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 12
  • Contact Diameter: 1.0mm
  • Contact Type: Pin
  • Gender: Male
  • Cable Diameter Range: 8mm - 10.5mm
  • Current Rating IEC 60512-5-32: 3
  • Rated Voltage IEC 60664-32: 32
  • Protection: IP68
  • Operating Temperature: -40°C to +100°C
  • Housing: Thermoplastic
  • Color: Black
  • Termination: Crimp
  • Sealing Material: Chloroprene, silicone
  • Locking: QUICKLOCK SYSTEM
  • Cable Gland Size: PG11
  • RoHS Compliant?: Yes
  • Mating Cycles: >500
  • Mating Parts: C09111G0120005U, C09111G0120095U
Male Cable Connector, Quicklock, Size M16, 12 Contacts (sold separately), Cable Diameter 8.5-10.5mm
