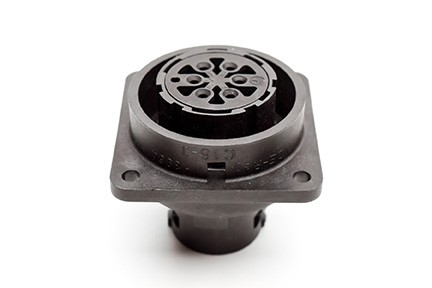

C01620G0051002 5+PE Female receptacle with mounted gasket
C01620G0051002 5+PE Female receptacle with mounted gasket

C01620G0051002 5+PE Female receptacle with mounted gasket

$0.00
Female Receptacle
PART NUMBER: C01620G0051002
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 2
  • Insulation Resistance: ? 10(8)  omega
  • Contact Resistance: ? 5 momega
  • Contacts: 5+PE
  • Version: With mounted gasket
  • Rated Voltage: 400V
  • Rated Impulse Voltage: 6000V
  • Current Carrying Capacity: 21A
  • Operating Temperature: -40°C to +100°C
  • Protection: IP65
  • Insertion/Withdrawal Force: ? 15 N
  • Lifetime: ? 500 mating cycles
  • Contact Plating: Silver/Gold
  • Housing: Polyamid 6.6
  • Gasket: Neoprene
  • Dielectric Material: Polyamid 6.6
  • Termination: Screw
  • Wire Gauge: 4.0mm² (12 AWG)
  • Locking: Bayonet
  • Style: G
  • Rated Voltage per UL 1977: 400V
5+PE Female receptacle with mounted gasket. Mounting hole Ø43.2. Suitable sealing for fixing screws must be provided. Contacts included.
