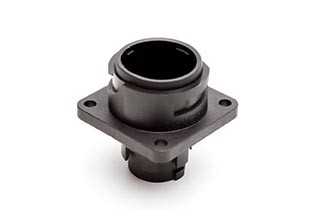

  8. C01610C0150001 12+3+PE Male receptacle with mounted gasket
C01610C0150001 12+3+PE Male receptacle with mounted gasket
C01610C0150001 12+3+PE Male receptacle with mounted gasket

C01610C0150001 12+3+PE Male receptacle with mounted gasket

$0.00
Male Receptacle
PART NUMBER: C01610C0150001
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 1
  • Insulation Resistance: ? 10(8)  omega
  • Contact Resistance: ? 5 momega
  • Contacts: 12+3+PE
  • Version: With mounted gasket
  • Rated Voltage: 3 x 320V , 12 x 24V
  • Rated Impulse Voltage: 4 x 4000V, 12 x 800V
  • Rated Current: 16A
  • Current Carrying Capacity: 4 x 12A, 12 x 6A
  • Operating Temperature: -40°C to +125°C
  • Protection: IP65
  • Insertion/Withdrawal Force: ? 25 N
  • Lifetime: ? 500 mating cycles
  • Contact Plating: Silver/Gold
  • Housing: Polyamid 6.6
  • Gasket: Neoprene
  • Dielectric Material: Polyamid 6.6
  • Termination: Crimp
  • Wire Gauge: 0.09 - 2.5mm² (28-14 AWG)
  • Locking: Bayonet
  • Style: C
  • Rated Voltage per UL 1977: 250V/24V
12+3+PE Male receptacle with mounted gasket. Mounting hole Ø26.2. Suitable sealing for fixing screws must be provided. For use with crimp contacts (sold separately).
