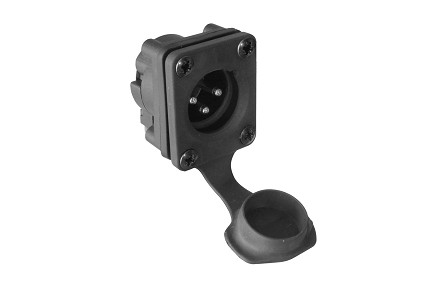

AXS3MPH 3 Pole Horizontal Male Plug PCB Mount with Protective Cap, IP65, For 1.0mm to 1.5mm Panel Thickness
AXS3MPH 3 Pole Horizontal Male Plug PCB Mount with Protective Cap, IP65, For 1.0mm to 1.5mm Panel Thickness
AXS3MPH 3 Pole Horizontal Male Plug PCB Mount with Protective Cap, IP65, For 1.0mm to 1.5mm Panel Thickness
$0.00
Chassis Mounts
PART NUMBER:
AXS3MPH
Datasheet
:
View / Download
3
65
15
Plastic
SPECIFICATIONS:
No. of Poles:
3
Contact Type:
Pin
Gender:
Male
Contact Plating:
Tin
Current Carrying Capacity:
15A
Voltage Rating:
133V
Termination:
Printed Circuit Board (PCB)
Max. Wire Gauge:
14AWG
Housing Material:
Thermoplastic
Finish:
Black
IP Rating:
IP65
Operating Temperature:
-25°C to +75°C
Flammability Rating:
UL94V-0
Environmental:
Complies with EU RoHS 2 Directive 2011/65/EU
Mating Cycles:
1000
Mating Part(s)*:
AXX3F*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
3 Pole Horizontal Male Plug PCB Mount with Protective Cap, IP65, For 1.0mm to 1.5mm Panel Thickness
Audio & Entertainement
Audio & Entertainment~XLR
133
Connectors~Chassis Mounts
