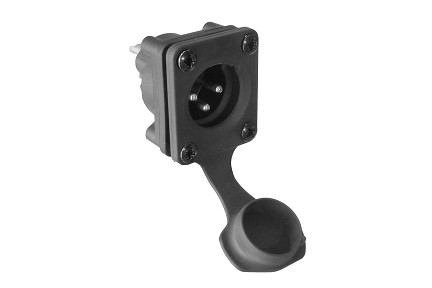

AXS3MP 3 Pole Male Plug Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.0mm to 1.5mm Panel Thickness. Comparable to PN# NC3MDX-TOP
AXS3MP 3 Pole Male Plug Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.0mm to 1.5mm Panel Thickness. Comparable to PN# NC3MDX-TOP
AXS3MP 3 Pole Male Plug Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.0mm to 1.5mm Panel Thickness. Comparable to PN# NC3MDX-TOP
$0.00
Chassis Mounts
PART NUMBER:
AXS3MP
Datasheet
:
View / Download
3
65
15
Plastic
SPECIFICATIONS:
No. of Poles:
3
Contact Type:
Pin
Gender:
Male
Contact Plating:
Tin
Current Carrying Capacity:
15A
Voltage Rating:
133V
Termination:
Solder Bucket
Max. Wire Gauge:
14AWG
Housing Material:
Thermoplastic
Finish:
Black
IP Rating:
IP65
Operating Temperature:
-25°C to +75°C
Flammability Rating:
UL94V-0
Environmental:
Complies with EU RoHS 2 Directive 2011/65/EU
Mating Cycles:
1000
Mating Part(s)*:
AXX3F*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
3 Pole Male Plug Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.0mm to 1.5mm Panel Thickness. Comparable to PN# NC3MDX-TOP
Audio & Entertainement
Audio & Entertainment~XLR
133
Connectors~Chassis Mounts
Related Items
AX3F0M 3 pole Socket (Female) Plug. AX XLR Audio Cable Connector. Satin Nickel, w/ Black Marking Sleeve
REQUEST A QUOTE
AXS3MP1 3 Pole Male Plug Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.5mm to 2.0mm Panel Thickness. Comparable to PN# NC3MDX-TOP
REQUEST A QUOTE
AXS3MP1H 3 Pole Horizontal Male Plug PCB Mount with Protective Cap, IP65, For 1.5mm to 2.0mm Panel Thickness
REQUEST A QUOTE
AXS3MP1V 3 Pole Vertical Male Plug PCB Mount with Protective Cap, IP65, For 1.5mm to 2.0mm Panel Thickness
REQUEST A QUOTE
AXS3MP2 3 Pole Male Plug Chassis Mount with Protective Cap, IP65, Solder Bucket, For 2.0mm to 3.0mm Panel Thickness. Comparable to PN# NC3MDX-TOP
REQUEST A QUOTE
AXS3MP2H 3 Pole Horizontal Male Plug PCB Mount with Protective Cap, IP65, For 2.0mm to 3.0mm Panel Thickness
REQUEST A QUOTE
AXS3MP2V 3 Pole Vertical Male Plug PCB Mount with Protective Cap, IP65, For 2.0mm to 3.0mm Panel Thickness
REQUEST A QUOTE
AXS3MPH 3 Pole Horizontal Male Plug PCB Mount with Protective Cap, IP65, For 1.0mm to 1.5mm Panel Thickness
REQUEST A QUOTE
AXS3MPV 3 Pole Vertical Male Plug PCB Mount with Protective Cap, IP65, For 1.0mm to 1.5mm Panel Thickness
REQUEST A QUOTE
AXX3F 3 Pole XLR Female Cable Connector, Standard Plating, Nickel Finish. Comparable to PN #NC3FXX
REQUEST A QUOTE
AXX3FB 3 Pole XLR Female Cable Connector, Standard Plating, Black Finish. Comparable to PN# NC3FXX-BAG
REQUEST A QUOTE
AXX3FB-AU 3 Pole Socket (Female) Plug. XLR AX Audio Cable Connector. Black Finish, Gold Contact Plating. Comparable to PN# NC3FXX-B
REQUEST A QUOTE
