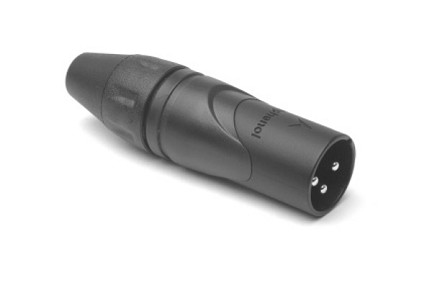

AX3MB BULK 3 Pole XLR Male Cable Connector, Black Finish, Bulk Packaging
AX3MB BULK 3 Pole XLR Male Cable Connector, Black Finish, Bulk Packaging
AX3MB BULK 3 Pole XLR Male Cable Connector, Black Finish, Bulk Packaging
$0.00
Audio Cable Connector
PART NUMBER:
AX3MB BULK
Datasheet
:
View / Download
3
Circular
40
15
Metal
SPECIFICATIONS:
Finish:
Black
Positions:
3
Gender:
Male
Contact Plating:
Silver
IP Rating:
IP40
Current Carrying Capacity:
15A
Termination:
Solder
Max Wire Gauge:
14AWG
Flammability Rating:
UL94V-0
Environmental:
Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS:
133V (not suitable for domestic applications above 50V)133V (not suitable for domestic applications above 50V)
Test Voltage AC RMS:
1400V
Typical Contact Resistance:
< 3mΩ
Insulation Resistance:
< 1GΩ
Operating Temperature:
-25°C to +75°C (-13°F to -167°F)
Insertion and Withdrawal Force:
> 10N - < 30N
Typical Cable Retention Force:
Approximately 22Kg to 44Kg, depending on cable material and diameter
Cable OD Range:
3mm to 8mm (0.11" to 0.314")
Mating Cycles:
1000
Housing Material:
Diecast Zinc Alloy
Contact Type:
Machined
Application(s):
Audio & Lighting
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
3 Pole XLR Male Cable Connector, Black Finish, Bulk Packaging
Audio & Entertainment
Audio & Entertainment~XLR~AX~Professional Range
Audio~Cable Connector~Pin (Male)|Audio~Plugs
