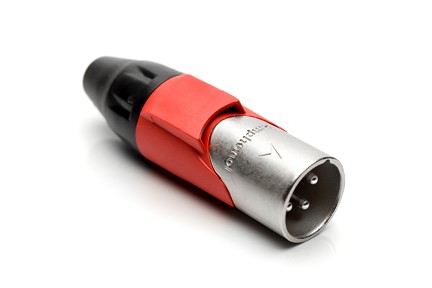

1. AX3M2M 3 pole Pin (Male) Plug. AX XLR Audio Cable Connector. Satin Nickel, w/ Red Marking Sleeve
AX3M2M 3 pole Pin (Male) Plug. AX XLR Audio Cable Connector. Satin Nickel, w/ Red Marking Sleeve
AX3M2M 3 pole Pin (Male) Plug. AX XLR Audio Cable Connector. Satin Nickel, w/ Red Marking Sleeve

AX3M2M 3 pole Pin (Male) Plug. AX XLR Audio Cable Connector. Satin Nickel, w/ Red Marking Sleeve

$0.00
Audio Cable Connector
PART NUMBER: AX3M2M
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 3
  • Contact Plating: Silver
  • Contact Type: Machined
  • IP Rating: IP40
  • Current Carrying Capacity: 15A
  • Termination: Solder
  • Max Wire Gauge: 14AWG
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Service Voltage RMS: 133V (not suitable for domestic applications above 50V)
  • Test Voltage AC RMS: 1400V
  • Typical Contact Resistance: < 3mΩ
  • Insulation Resistance: < 1GΩ
  • Operating Temperature: -25°C to +75°C (-13°F to -167°F)
  • Insertion and Withdrawal Force: > 10N - < 30N
  • Typical Cable Retention Force: Approximately 22Kg to 44Kg, depending on cable material and diameter
  • Cable OD Range: 3mm to 8mm (0.118" to 0.314")
  • Mating Cycles: 1000
  • Housing Material: Diecast Zinc Alloy
  • Finish: Satin Nickel
  • Application(s): Audio & Lighting
3 pole Pin (Male) Plug. AX XLR Audio Cable Connector. Satin Nickel, w/ Red Marking Sleeve
