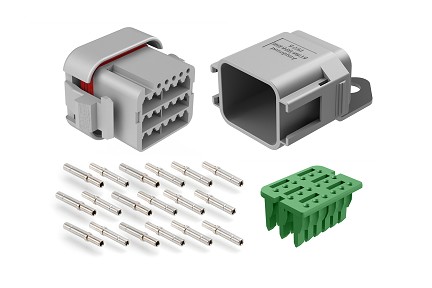

ATV46-18PSA-BUSCKIT 18-way Complete Buss Kit, includes Receptacle and Plug, Contacts, Wedgelock, Key A

ATV46-18PSA-BUSCKIT 18-way Complete Buss Kit, includes Receptacle and Plug, Contacts, Wedgelock, Key A

ATV46-18PSA-BUSCKIT 18-way Complete Buss Kit, includes Receptacle and Plug, Contacts, Wedgelock, Key A

$0.00

Receptacle & Plug Kit

PART NUMBER: ATV46-18PSA-BUSCKIT

Datasheet:

View / Download 3D Model:

View/Download

No. of Positions: 18
Amperage: 13A
Wire Range: 14-20 AWG (2.0-0.5mm²)
Volts: 250
Contact Size: 16
Contact Type (Pin/Socket): Pin & Socket
Contact Plating: Nickel
Contact Material: Copper Alloy
Gender: Female
IP Rating: IP68 (in mated condition)
Color: Grey
Operating Temperature: -55°C to +125°C
Housing Material: thermoplastic
Dielectric Value: Less than 2 milliamps current leakage @ 1500 V AC
Insulation Resistance: 1000 MEGOHMS MIN @ 25°C.
RoHS Compliant (yes/No): Yes
Mating Cycle Durability: >100

QUANTITY

Description

18-way Complete Buss Kit, includes Receptacle and Plug, Contacts, Wedgelock, Key A

AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141

AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141

REQUEST A QUOTE

ATV04-18PA-BUS 18-way Receptacle, Key A, Buss

ATV04-18PA-BUS 18-way Receptacle, Key A, Buss

REQUEST A QUOTE

AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool

AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool

REQUEST A QUOTE

AUTK-16 Size 16 Contact Adjustable Crimping Tool

AUTK-16 Size 16 Contact Adjustable Crimping Tool

REQUEST A QUOTE

CA-5D12 - Universal Hand Crimp Tool, Size 12/16/20 Solid Contacts Only

CA-5D12 - Universal Hand Crimp Tool, Size 12/16/20 Solid Contacts Only

REQUEST A QUOTE
