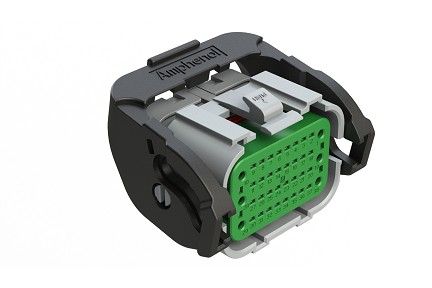

  6. ATV06-38SB-S2 38 position plug, socket, power and signal, keyed B
ATV06-38SB-S2 38 position plug, socket, power and signal, keyed B
ATV06-38SB-S2 38 position plug, socket, power and signal, keyed B

ATV06-38SB-S2 38 position plug, socket, power and signal, keyed B

$0.00
Plug
PART NUMBER: ATV06-38SB-S2
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Number of Positions: 38
  • Contact Size: 16, 1.0mm x.064mm
  • Wire Range: Ø1.5-1.8mm(20AWG) / Ø1.6-2.8mm (22-14AWG)
  • Amperage: 13A, 5A
  • Voltage: 250
  • Housing Material: Thermoplastic UL94
  • Contact Type (Pin/Socket): Socket
  • Contacts Included: FALSE
  • Color: Gray
  • Gender: Female
  • Temperature Range: -40°C to +125°C
  • RoHS Compliant: YES
  • Dielectric Value: Less than 2 milliamps current leakage @2000 Volts AC
  • Insulation Resistance: 500 megohms minimum
  • Mating Cycle Durability: >500
  • Shape: Rectangular
  • Operating Temperature: -40°C to +125°C
  • IP Rating: IP68 and IP69K (in mated condition)
  • Mating Part*: ATV04-38PB-S2
38 position plug, socket, power and signal, keyed B



Related Items

ATV04-38PB-S2 38 position receptacle, pin, power and signal, keyed B
ATV04-38PB-S2 38 position receptacle, pin, power and signal, keyed B
REQUEST A QUOTE
PL000762 Dust cap for plug
PL000762 Dust cap for plug
REQUEST A QUOTE
SC000571G15 Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, 15?
SC000571G15 Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, 15?" Gold Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000571G30 Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, 30?
SC000571G30 Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, 30?" Gold Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000572F Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, Gold Flash Plating, 5A, Wire Range 20-22AWG
SC000572F Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, Gold Flash Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000572G10 Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, 10?
SC000572G10 Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, 10?" Gold Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000572G5 Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, 5?
SC000572G5 Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, 5?" Gold Plating 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000572N Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, Nickel Plating, 5A, Wire Range 20-22AWG
SC000572N Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, Nickel Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000572T Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, Tin Plating, 5A, Wire Range 20-22AWG
SC000572T Size 1.0x0.64mm Stamped & Formed Socket Contact, Signal, Tin Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SS14M2F Size 16 Socket Contact, Stamped, Gold Flash over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
SS14M2F Size 16 Socket Contact, Stamped, Gold Flash over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SS14M2G10 Size 16 Socket Contact, Stamped, Gold 10µ
SS14M2G10 Size 16 Socket Contact, Stamped, Gold 10µ" over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SS14M2G15 Size 16 Socket Contact, Stamped, Gold 15µ
SS14M2G15 Size 16 Socket Contact, Stamped, Gold 15µ" over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 tangs
REQUEST A QUOTE
SS14M2G30 Size 16 Socket Contact, Stamped, Gold 30µ
SS14M2G30 Size 16 Socket Contact, Stamped, Gold 30µ" over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 tangs
REQUEST A QUOTE
SS14M2G5 Size 16 Socket Contact, Stamped, Gold 5µ
SS14M2G5 Size 16 Socket Contact, Stamped, Gold 5µ" over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SS14M2N Size 16 Socket Contact, Stamped, Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
SS14M2N Size 16 Socket Contact, Stamped, Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SS14M2T Size 16 Socket Contact, Stamped, Tin over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
SS14M2T Size 16 Socket Contact, Stamped, Tin over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SS16M2F Size 16 Socket Contact, Stamped, Gold Flash over Nickel, 13A, Wire Range.75-1.5mm², 18-16 AWG, with 3 Tangs
SS16M2F Size 16 Socket Contact, Stamped, Gold Flash over Nickel, 13A, Wire Range.75-1.5mm², 18-16 AWG, with 3 Tangs
REQUEST A QUOTE
SS16M2G10 Size 16 Socket Contact, Stamped, Gold 10µ
SS16M2G10 Size 16 Socket Contact, Stamped, Gold 10µ" over Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
REQUEST A QUOTE
SS16M2G15 Size 16 Socket Contact, Stamped, Gold 15µ
SS16M2G15 Size 16 Socket Contact, Stamped, Gold 15µ" over Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
REQUEST A QUOTE
SS16M2G30 Size 16 Socket Contact, Stamped, Gold 30µ
SS16M2G30 Size 16 Socket Contact, Stamped, Gold 30µ" over Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
REQUEST A QUOTE
SS16M2G5 Size 16 Socket Contact, Stamped, Gold 5µ
SS16M2G5 Size 16 Socket Contact, Stamped, Gold 5µ" over Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
REQUEST A QUOTE
SS16M2N Size 16 ocket Contact, Stamped, Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
SS16M2N Size 16 ocket Contact, Stamped, Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
REQUEST A QUOTE
SS16M2T Size 16 Socket Contact, Stamped, Tin over Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
SS16M2T Size 16 Socket Contact, Stamped, Tin over Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
REQUEST A QUOTE
SS20M2F Size 16 Socket Contact, Stamped, Gold Flash over Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
SS20M2F Size 16 Socket Contact, Stamped, Gold Flash over Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
REQUEST A QUOTE
SS20M2G10 Size 16 Socket Contact, Stamped, Gold 10µ
SS20M2G10 Size 16 Socket Contact, Stamped, Gold 10µ" over Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
REQUEST A QUOTE
SS20M2G15 Size 16 Socket Contact, Stamped, Gold 15µ
SS20M2G15 Size 16 Socket Contact, Stamped, Gold 15µ" over Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
REQUEST A QUOTE
SS20M2G30 Size 16 Socket Contact, Stamped, Gold 30µ
SS20M2G30 Size 16 Socket Contact, Stamped, Gold 30µ" over Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
REQUEST A QUOTE
SS20M2G5 Size 16 Socket Contact, Stamped, Gold 5µ
SS20M2G5 Size 16 Socket Contact, Stamped, Gold 5µ" over Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
REQUEST A QUOTE
SS20M2N Size 16 Socket Contact, Stamped, Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
SS20M2N Size 16 Socket Contact, Stamped, Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
REQUEST A QUOTE
SS20M2T Size 16 Socket Contact, Stamped, Tin plating over Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
SS20M2T Size 16 Socket Contact, Stamped, Tin plating over Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
REQUEST A QUOTE
