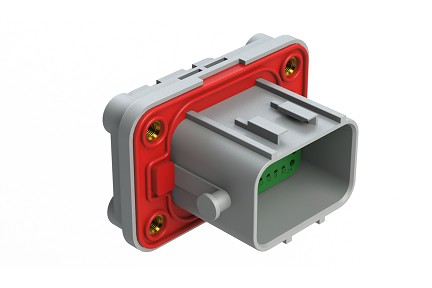

ATV04-38PC-S2 38 position receptacle, pin, power and signal, keyed C
ATV04-38PC-S2 38 position receptacle, pin, power and signal, keyed C
ATV04-38PC-S2 38 position receptacle, pin, power and signal, keyed C
$0.00
Receptacle
PART NUMBER:
ATV04-38PC-S2
Datasheet
:
View / Download
3D Model
:
View/Download
38
Rectangular / Other
67
13, 5
Plastic
SPECIFICATIONS:
No. of Contacts:
38
Contact Size:
16, 1.0mm x.064mm
Wire Range:
Ø1.5-1.8mm(20AWG) / Ø1.6-2.8mm (22-14AWG)
Amperage:
13A, 5A
Voltage:
250
Housing Material:
Thermoplastic UL94
Contact Type (Pin/Socket):
Pin
Contacts Included:
FALSE
Color:
Gray
Gender:
Male
Temperature Range:
-40°C to +125°C
RoHS Compliant:
TRUE
Dielectric Value:
Less than 2 milliamps current leakage @2000 Volts AC
Insulation Resistance:
500 megohms minimum
Mating Cycle Durability:
>500
Shape:
Rectangular
Operating Temperature:
-40°C to +125°C
IP Rating:
IP68 and IP69K (in mated condition)
RoHS Compliant:
YES
Mating Part*:
ATV06-38SC-S2
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
38 position receptacle, pin, power and signal, keyed C
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~Duralok~ATV
250
Connectors~Receptacles|Connectors~Pin (Male)|Connectors~Power & Signal
Related Items
ATV06-38SC-S2 38 position plug, socket, power and signal, keyed C
REQUEST A QUOTE
PL000761 Dust cap for receptacle
REQUEST A QUOTE
SC000571F Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, Gold Flash, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000571G10 Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, 10?" Gold Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000571G15 Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, 15?" Gold Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000571G30 Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, 30?" Gold Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000571G5 Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, 5?" Gold Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000571N Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, Nickel Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SC000571T Size 1.0x0.64mm Stamped & Formed Pin Contact, Signal, Tin Plating, 5A, Wire Range 20-22AWG
REQUEST A QUOTE
SP14M2F Size 16 Stamped & Formed Pin Contact, Gold Flash Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000. Comparable to PN# SM14M1D70
REQUEST A QUOTE
SP14M2G10 Size 16 Stamped & Formed Pin Contact, Gold 10µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP14M2G15 Size 16 Stamped & Formed Pin Contact, Gold 15µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP14M2G30 Size 16 Stamped & Formed Pin Contact, Gold 30µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000.
REQUEST A QUOTE
SP14M2G5 Size 16 Stamped & Formed Pin Contact, Gold 5µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP14M2N Size 16 Pin Contact, Stamped, Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SP14M2T Size 16 Stamped & Formed Pin Contact, Tin Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000.
REQUEST A QUOTE
SP16M2F Size 16 Stamped & Formed Pin Contact, Gold Flash Plating, 13A, Wire Range 16-18AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2G10 Size 16 Stamped & Formed Pin Contact, Gold 10µ" Plating, 13A, Wire Range 16-18AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2G15 Size 16 Stamped & Formed Pin Contact, Gold 15µ" Plating, 13A, Wire Range 16-18AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2G30 Size 16 Stamped & Formed Pin Contact, Gold 30µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2G5 Size 16 Stamped & Formed Pin Contact, Gold 5µ" Plating, 13A, Wire Range 16-18AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2N Size 16 Pin Contact, Stamped, Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
REQUEST A QUOTE
SP16M2T Size 16 Stamped & Formed Pin Contact, Tin Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2F Size 16 Stamped & Formed Pin Contact, Gold Flash Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2G10 Size 16 Stamped & Formed Pin Contact, Gold 10µ" Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2G15 Size 16 Stamped & Formed Pin Contact, Gold 15µ" Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2G30 Size 16 Stamped & Formed Pin Contact, Gold 30µ" Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2G5 Size 16 Stamped & Formed Pin Contact, Gold 5µ" Plating, 13A, Wire Range, 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2N Size 16 Pin Contact, Stamped, Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
REQUEST A QUOTE
SP20M2T Size 16 Stamped & Formed Pin Contact, Tin Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000.
