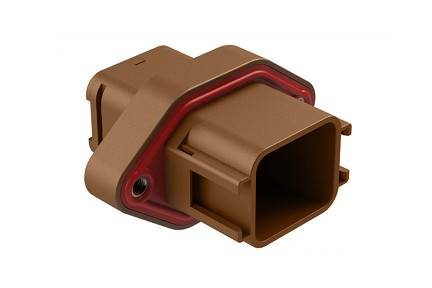

ATV02-18PD-RR01 18 position flange mount receptacle, Size 16 contact, key D, double reduced seal
ATV02-18PD-RR01 18 position flange mount receptacle, Size 16 contact, key D, double reduced seal

ATV02-18PD-RR01 18 position flange mount receptacle, Size 16 contact, key D, double reduced seal

$0.00
Receptacle
PART NUMBER: ATV02-18PD-RR01
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • No. of Positions: 18
  • Amperage: 13 A
  • Wire Range: 16-22 AWG (1.5-0.35 mm²)
  • IP Rating: IP68 (in mated condition)
  • Volts: 250 V
  • Contact Size: 16
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Color: Brown
  • Operating Temperature: -55°C to +125°C
  • Housing Material: Thermoplastic
  • Seal Material: Silicone Rubber
  • Seal Diameter: 1.12mm (.044") - 2.31mm (.09")
  • Seal Color: Yellow
  • Dielectric Value: Less than 2 milliamps current leakage @ 1500 V AC
  • Insulation Resistance: 1000 MEGOHMS MIN @ 25°C
  • RoHS Compliant?: YES
  • Mating Cycle Durability: >100
  • Wedge Part#: AWV-18P
  • Mating Part: ATV06-18SD-RR01
18 position flange mount receptacle, Size 16 contact, key D, double reduced seal
